Maverick 63104

Features

Long-Distance Extension: Transmits USB 3.2 Gen 1 and DisplayPort 1.2a signals up to 100 meters (328 feet) over a single CAT 6a/7 cable.

USB 3.2 Gen 1 Connectivity: Provides four USB 3 ports, supporting data rates up to 5Gbps and simultaneous connection of up to 30 devices.

4K Video: Supports DisplayPort resolutions up to UHD 4K (3840 x 2160) at 60Hz, with YCbCr 4:4:4 and RGB color support up to 10bpc.

Ethernet Pass-Through: Includes 100/1000 Ethernet pass-through for network connectivity or integration with existing LAN infrastructure.

RS232 Pass-Through: Bidirectional RS232 channel for command/control applications and serial device connectivity.

ExtremeUSB-C® Technology: Ensures transparent USB 3-2-1 extension, plug-and-play operation without drivers, and compatibility with major operating systems including Windows®, macOS™, Linux®, and ChromeOS™.

Mountable: Optional mounting kit available for secure unit installation onto walls, desks, trays or 19” racks.

Specifications

Range

• Point-to-Point: Up to 100m (328 ft) over a single CAT 6a/7 cable

Video

• Resolutions up to UHD 4K, 3840 x 2160 @60Hz
• Color: YCbCr 4:4:4 and RGB color support up to 10bpc

USB Support

• USB Bandwidth USB 3.2 Gen 1: Up to 5Gbps
• Host Compatibility: OHCI, UHCI, EHCI, xHCI
• Maximum Devices: Supports up to 30 devices

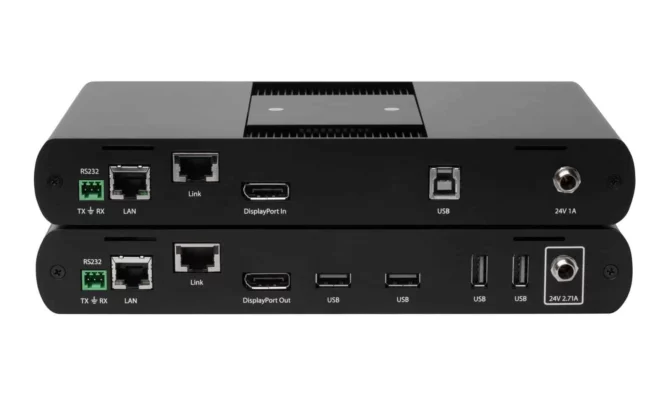

Local Extender

• USB Connector: 1x USB 3.2 Gen 1 Type B Port
• Link Connector: 1x RJ45 “LINK”
• Network Pass-Through: 1x RJ45 “LAN”
• DisplayPort Connector: 1x DisplayPort 1.2a Port
• RS232 Connector: 1x 3-pin Terminal Block
• Power Supply: 100-240V AC Input, 24V 1A DC Output
• Enclosure Material: Black Anodized Aluminum
• Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4” x 9.1” x 1.3”)
• Weight: 920 g (2.03 lbs.)

Remote Extender

• USB Connector: 4x USB 3.2 Gen 1 Type A Ports
• Link Connector: 1x RJ45 “LINK”
• Network Pass-Through: 1x RJ45 “LAN”
• DisplayPort Connector: 1x DisplayPort 1.2a Port
• RS232 Connector: 1x 3-pin Terminal Block
• Available Current: Up to 1.2 Amp (6W) to each USB port
• Power Supply: 100-240V AC Input, 24V 2.71A DC Output
• Enclosure Material: Black Anodized Aluminum
• Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4” x 9.1” x 1.3”)
• Weight: 990 g (2.18 lbs.)

Hub Tiers Used: 2

Environmental

• Operating Temperature: 0°C ~ 50°C (32°F to 122°F)
• Storage Temperature: -20°C – 70°C (-4°F – 158°F)
• Operating Humidity: +20% ~ 80% relative humidity, non condensing
• Storage Humidity: 10-90%  relative humidity, non-condensing

Compliance

• FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The Maverick 63104 extender system includes:

• Maverick 63104 Local Extender
• Maverick 63104 Remote Extender
• USB 3.2 Gen 1 Cable
• 24V 1A AC Power Adapter
• 24V 2.71A AC Power Adapter
• 2x Country Specific Power Cords
• 2x DisplayPort Cables
• 2x RS232 Mating Connectors
• Quick Start Guide
• 2-year Warranty

Packaged shipping weight:

• 2.95 kg (6.49 lbs.)
