Ranger 2301

1-Port USB 2.0 100m CAT 5e/6/7 Extender System

Icron Ranger® 2301 extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 cabling. This 1-port USB 2.0 extender with ExtremeUSB® is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

Overview

The Icron Ranger® 2301 provides a reliable solution for extending USB 2.0 connections up to 100 meters using CAT 5e/6/7 cabling. With support for data rates up to 480Mbps and no need for software drivers, it is compatible with major operating systems including Windows®, macOS™, and Linux®. This FCC/CE Class B certified extender is suitable for extending a wide variety of USB devices.

Applications

  • Industrial Control
  • KVM Extension
  • Digital Signage
  • Medical Device Connectivity
  • Security: Web Camera, Access Control

Features

High-Speed Performance: Supports USB 2.0 data rates up to 480Mbps and USB 1.1 data rates up to 12Mbps.

Flexible Range: Extends USB connections up to 100 meters (328 feet) over CAT 5e/6/7 cabling.

Mass Storage Acceleration: Optimized for efficient bulk data transfers.

Plug-and-Play: No software drivers required; compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Certified Reliability: FCC/CE Class B certified for quality assurance.

Specifications

Range

  • Direct Connect:Up to 100m (328 ft) over CAT 5e/6/7

USB Speeds

  • USB 2.0: Up to 480Mbps
  • USB 1.1: Up to 12Mbps

USB Device Support

  • Maximum Devices: Supports up to 30 devices

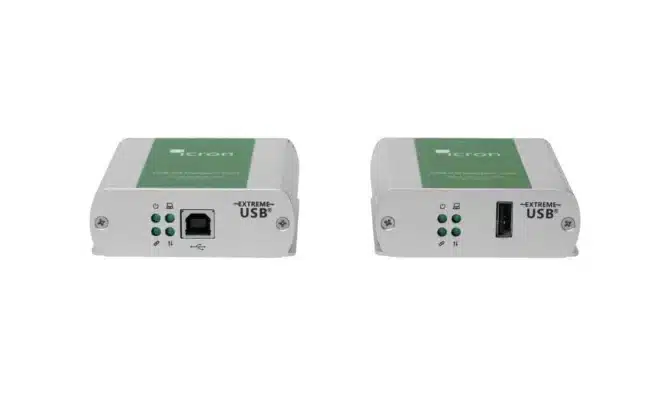

Local Extender (LEX)

  • USB Connector: 1x USB Type B Port

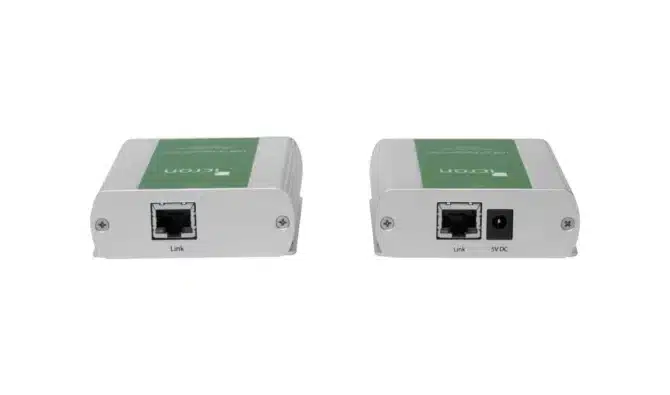

  • Link Connector: 1x RJ45
  • Mounting: Slots for cable ties or optional mounting kit available
  • Enclosure Material: Silver Anodized Aluminum
  • Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
  • Weight: 121 g (0.27 lbs.)

Remote Extender (REX)

  • USB Connector: 1x USB Type A Port
  • Link Connector: 1x RJ45
  • Available Current: up to 1 Amp to USB Port
  • Power Supply: 100-240V AC Input, 5V 3A DC Output
  • Mounting: Slots for cable ties or optional mounting kit available
  • Enclosure Material: Silver Anodized Aluminum
  • Dimensions: 86mm x 75mm x 26mm (3.4″ x 3.0″ x 1.0″)
  • Weight: 122 g (0.27  lbs.)

Hub Tiers Used: 1

Environmental

  • Operating Temperature: 0°C to 50°C (32F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4F to 158°F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

  • FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The USB 2.0 Ranger 2301 extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • USB 2.0 Cable
  • AC Power Adapter
  • Country Specific Power Cord
  • Quick Start Guide
  • 2-year Warranty

Packaged shipping weight:

  • 775 g (1.71 lbs.)

Part Number

Part Number Name Description
00-00391 USB 2.0 Ranger® 2301 – NA 1-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, NA Power Cord
00-00392 USB 2.0 Ranger® 2301 – EU 1-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, EU Power Cord
00-00393 USB 2.0 Ranger® 2301 – UK 1-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, UK Power Cord
00-00394 USB 2.0 Ranger® 2301 – AU 1-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, AU Power Cord
00-00395 USB 2.0 Ranger® 2301 – JP 1-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, JP Power Cord
