Ranger 2304PoE

4-Port USB 2.0 Power over Ethernet LAN Extender System

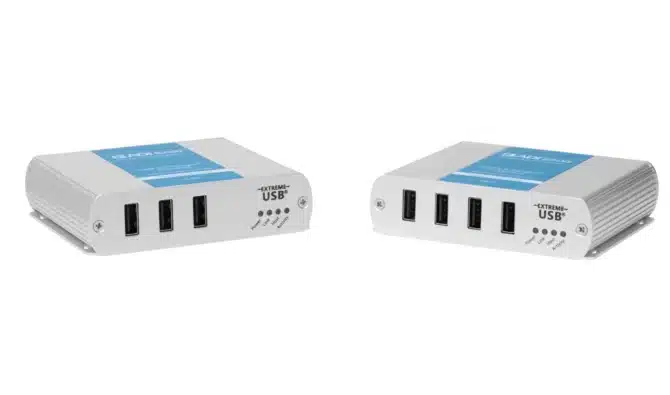

Icron Ranger® 2304PoE enables you to connect and extend all USB 2.0 device types to hosts across a Power over Ethernet enabled Gigabit Ethernet Local Area Network (LAN) using existing cabling. This ExtremeUSB® extender system features 4-ports on the REX and three additional ports on the LEX eliminating the need to connect an external USB hub.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron Ranger® 2304PoE is an advanced USB 2.0 extender designed for extending all types of USB 2.0 and 1.1 devices over a PoE-enabled Gigabit Ethernet network or a single CAT 5e/6/7 cable. By leveraging existing LAN infrastructure, it simplifies installation and enhances IT management. The system is plug-and-play, requiring no software drivers and is compatible with major operating systems including Windows®, macOS™, Linux®, and ChromeOS™.

The Ranger 2304PoE supports data rates up to 480Mbps and can extend connections up to 100 meters (328 feet). It’s perfect for a wide range of applications, such as connecting keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, and USB 2.0 web cameras. With its 4-port REX and 3-port LEX, users can connect multiple USB devices without needing external hubs, making it ideal for industrial control, remote storage, digital signage, and more.

Applications

The Ranger 2304PoE system extends USB devices point-to-point with CAT 5e/6/7 cabling or can leverage existing network infrastructure, and is ideally suited for the following applications:

Industrial Control
Remote storage
KVM Extension
Digital Signage
Interactive Whiteboards
Medical Device Connectivity
Security and monitoring

Features

PoE Capability: Supports IEEE 802.3at, PoE+ (25.5W), reducing installation time and providing power through existing network infrastructure. Extends USB through a PoE+ capable minimum 1000Mbps LAN.

Network Integration: Can extend USB over a PoE+ capable LAN or single CAT 5e/6/7 cable, with a range of up to 100 meters (328 feet).

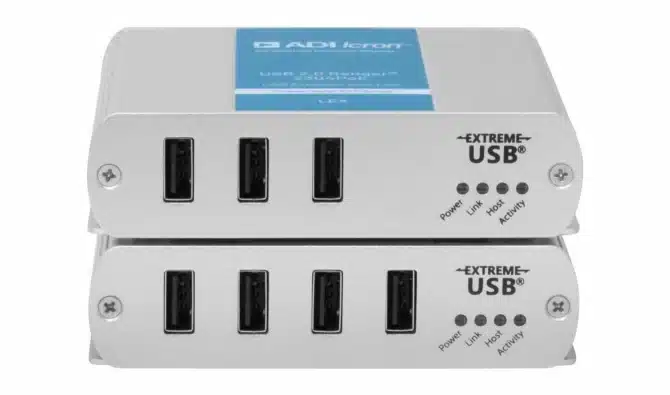

Port Configuration: Includes 4 USB 2.0 ports on the REX and 3 on the LEX, eliminating the need for additional USB hubs.

Data Rate: Supports data rates up to 480Mbps for high-speed USB 2.0 devices including isochronous webcams or audio peripherals.

Compatibility: Plug-and-play with no drivers required; compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Durable Design: Rugged metal enclosure designed for durability.

Specifications

Range

Network Connect: Up to 100m (328 ft) between switches over solid core CAT 5e/6/7
Direct Connect: Up to 100m (328 ft) over solid core CAT 5e/6/7 or better

USB Device Support

Network and DIrect Connect Bandwidth: Up to 480Mbps*
Device Compatibility: All USB 2.0 and 1.1
Maximum Devices: Supports up to 30 devices

Networking

Standards: 1000BASE-T*, IEEE 802.3at PoE+ (25.5W)
Data Traffic: Layer 2

Local Extender (LEX)

USB connector: 3x USB Type A Ports, 1x USB Type B Port
Link Connector: 1x RJ45 Ethernet Link Port
Power Supply:
- 802.3at PoE+ (25.5W)
- 100-240V AC Input, 24V 1A DC Output** (Optional, sold separately)
Available Current: Up to 1.5A at each USB port concurrently, 3.5A total
Enclosure Material: Silver Anodized Aluminum
Dimensions: 100mm x 86mm x 26mm (3.94″ x 3.39” x 1.02″)
Weight: 194 g (0.43 lbs.)

Remote Extender (REX)

USB Connector: 4x Type A Ports
Link Connector: Link connector: 1x RJ45
Power Supply:
- 802.3at PoE+ (25.5W)
- 100-240V AC Input, 24V 1A DC Output* (Optional, sold separately)
Available Current: Up to 1.5A at each USB port concurrently, 3.5A total
Enclosure Material: Silver Anodized Aluminum
Dimensions: 100mm x 86mm x 26mm (3.94″ x 3.39” x 1.02″)
Weight: 190g (0.42 lbs.)

Hub Tiers Used: 2

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class A), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

* Maximum speed is heavily dependent on network configuration, bandwidth and performance. 1000Base-T is highly recommended for best performance

** If both PoE power and the external power adapter are present, the external power supply serves as the main source of power.

In The Box

The USB 2.0 Ranger 2304PoE system includes:

Local Extender (LEX)
Remote Extender (REX)
2m USB cable
Quick Start Guide
2-year Warranty

Packaged shipping weight:

568 g (1.25 lbs.)

Part Number

Part Number	Name	Description
00-00465	USB 2.0 Ranger 2304PoE	3-Port LEX and 4-Port REX USB 2.0 Extender System, Power over Ethernet, USB A/B cable
10-00535	USB Mounting Kit – Silver	Kit includes: 2 brackets, 4 locking washers, 4 (M2.5 x 8mm) Phillips pan head screws. Order: 1 kit per LEX or REX; 2 kits per system.
21-00110	24V 1A AC Power Adapter (Level VI)	24V 1A DC Output, 100-240VAC Input Power Supply with 2.1mm (ID) Plug and IEC320-C7/C8 2-pin connector
21-00115	NA Ungrounded Power Cord	IEC320-C7/C8 2-pin Power Cord for North America
21-00116	EU Ungrounded Power Cord	IEC320-C7/C8 2-pin Power Cord for European Union
21-00117	UK Ungrounded Power Cord	IEC320-C7/C8 2-pin Power Cord for United Kingdom
21-00118	AU Ungrounded Power Cord	IEC320-C7/C8 2-pin Power Cord for Australia/New Zealand
21-00109	JP Ungrounded Power Cord	IEC320-C7/C8 2-pin Power Cord for Japan
