Polaris 7044

4×4 USB 3-2-1 Matrix

Icron Polaris™ 7044 is a 4×4 USB 3-2-1 Matrix enabling any host to conveniently connect to, and switch between, one or more devices. Polaris supports USB 3 (5Gbps), 2.0, and 1.1 devices while powering up to 15W offering up to 24 possible configurations, controlled via RS232, web GUI, or API providing extremely flexible USB connectivity.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron Polaris™ 7044 is a 4×4 USB Matrix that supports USB 3.2 Gen 1 (up to 5Gbps), 2.0, and 1.1 devices. Polaris 7044 provides flexibility for USB connectivity control via RS232, web GUI, or API, and offers up to 24 possible configurations.

Polaris offers supreme USB flexibility and connectivity in UCC boardroom settings. Ideal for use cases requiring in-room control, BYOD control (for easy BYOD integration and switching desired peripherals as necessary), or BYOD control for user preferred device for different video and audio connections.

For applications requiring additional USB extension, Polaris is compatible with all Icron ExtremeUSB® and ExtremeUSB-C™ extender systems.

Applications

Conference Rooms
Divisible Rooms
IT as part of a KVM
Desktop Switching

Features

4×4 USB Matrix: Manage up to 4 upstream and 4 downstream USB connections.

24 Possible Configurations: Flexible setup options to suit various needs.

High-Speed USB: Supports USB 3-2-1 devices up to 5Gbps.

Power Output: Provides up to 15W per USB-C port and 6W per USB-A port.

Versatile Control: Operate via RS232, network API, or LAN control with web GUI.

Secure Access: SSH secure login for enhanced security.

Rack Mountable: Fits two units in a single 19″ rack space.

Durable Design: Black anodized aluminum enclosure for durability

Specifications

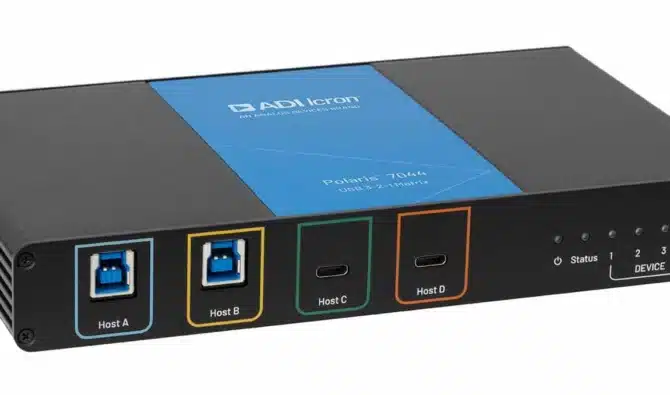

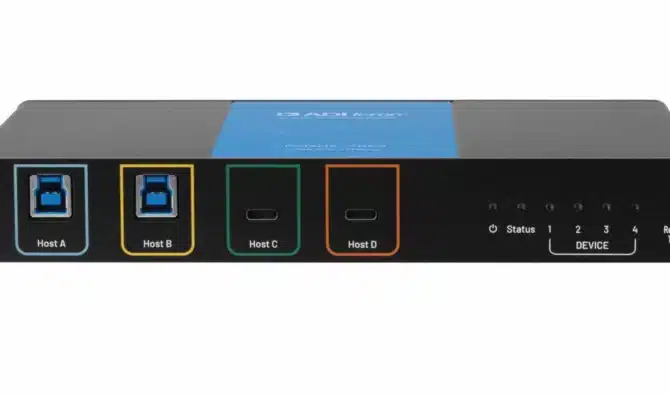

Host Upstream Ports: 2x USB-B Ports, 2x USB-C Ports

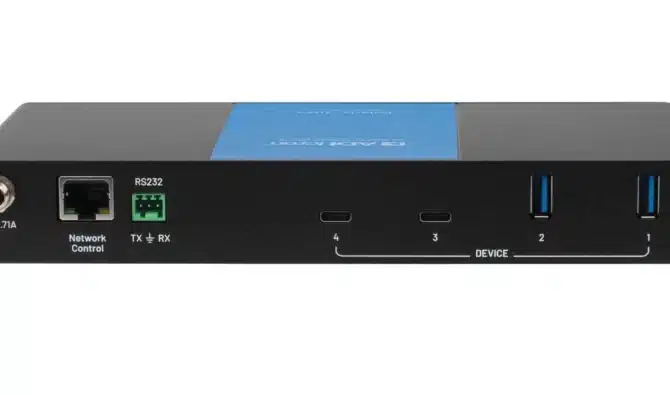

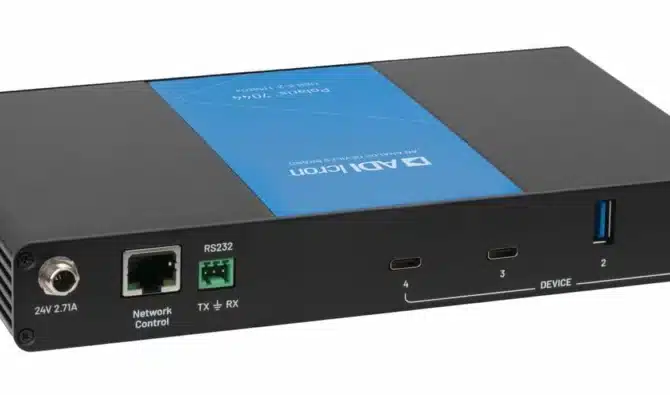

Device Downstream Ports: 2x USB-A Ports, 2x USB-C Ports
Traffic Types: Supports all USB Traffic Types
Device Types: Supports all USB Device Types
Available Power: 15W per USB-C Port, 6W per USB-A Port
Hub Tiers Used: 1
Network: 100BASE-T
Control: 1x RJ45, 1x 3-Pin RS232
Power Supply: 100-240V AC Input, 24V 2.71A DC Output
Enclosure Material: Black Anodized Aluminum
Dimensions: 212.5mm x 125mm x 30mm (8.37” x 4.92” x 1.18”)
Unit Weight: 998 g (2.2 lbs.)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Compliance Certifications: FCC (Class A), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The Icron Polaris 7044 includes:

Polaris 7044 Matrix
24V 2.71A International Power Adapter
Country Specific AC Power Cord
RS232 Mating Connector
Default Values Label (to affix where desired)
Quick Start Guide
2-year Warranty

Packaged shipping weight:

1179 g (2.60 lbs.)

Part Number

Part Number	Name	Description
00-00466	Icron Polaris 7044 Matrix – NA	Icron Polaris, Black 4×4 USB 3-2-1 Matrix, 100-240V Adapter – NA Plug
00-00467	Icron Polaris 7044 Matrix – EU	Icron Polaris, Black 4×4 USB 3-2-1 Matrix, 100-240V Adapter – EU Plug
00-00468	Icron Polaris 7044 Matrix – UK	Icron Polaris, Black 4×4 USB 3-2-1 Matrix, 100-240V Adapter – UK Plug
00-00469	Icron Polaris 7044 Matrix – AU	Icron Polaris, Black 4×4 USB 3-2-1 Matrix, 100-240V Adapter – AU Plug
00-00470	Icron Polaris 7044 Matrix – JP	Icron Polaris, Black 4×4 USB 3-2-1 Matrix, 100-240V Adapter – JP Plug
10-00394	USB Mounting Kit – Black	Black Mounting Kit includes: 2 brackets, 4 locking washers and 4 (M3 x 5mm) Philips pan head screws.
