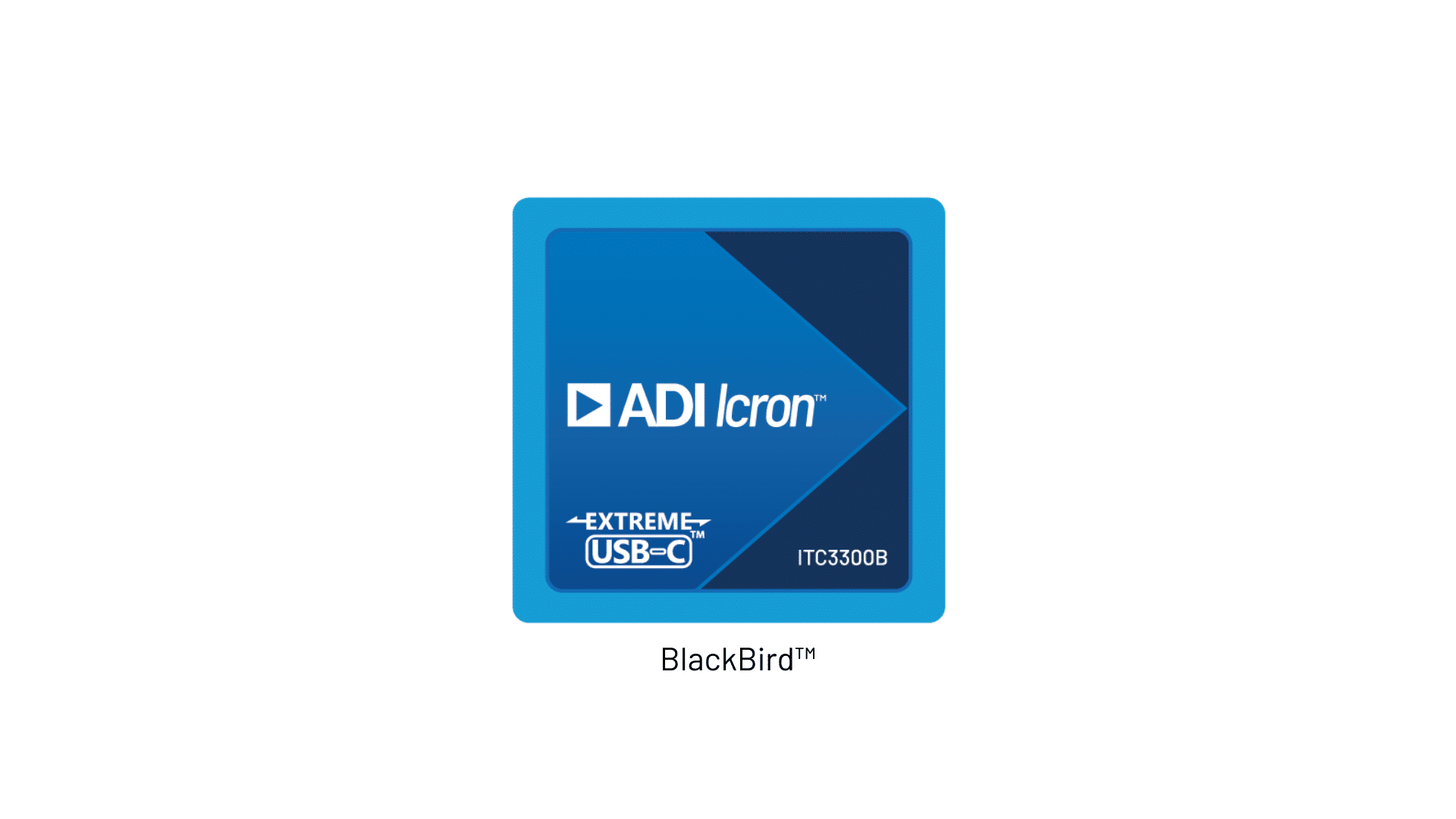

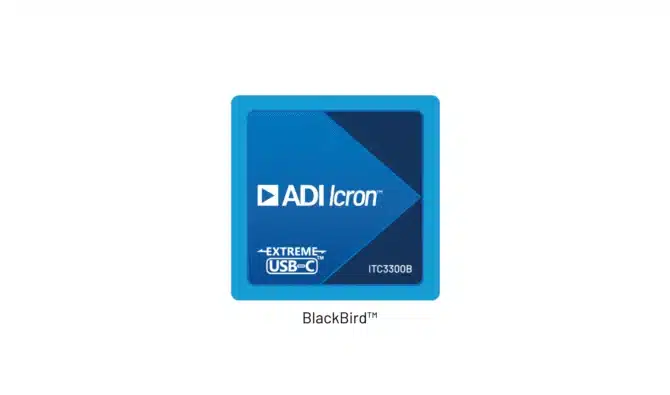

BlackBird ITC3300B

The ITC3300B chipset combines and extends DisplayPort, USB 3-2-1, Ethernet, and RS232 Side Channels onto a single link interface.

Overview Features

Overview

The BlackBird ITC3300B Series is Icron’s latest generation USB 3 ASIC capable of extending 4K video and USB 3 devices ideal for USB-C extension. This technology allows for seamless and reliable extension systems with a one-cable USB-C solution for the end user.

Applications:

Industrial Human Machine Interface
Video and/or USB Extension and Distribution for:
- Conference Rooms
- Unified Communication Spaces
- Digital Signage
- Live Events
- Divisible Rooms
- Security
DisplayPort and USB KVM for:
- Control Rooms
- Postproduction Studios
- Medical Imaging
DisplayPort and USB Isolation

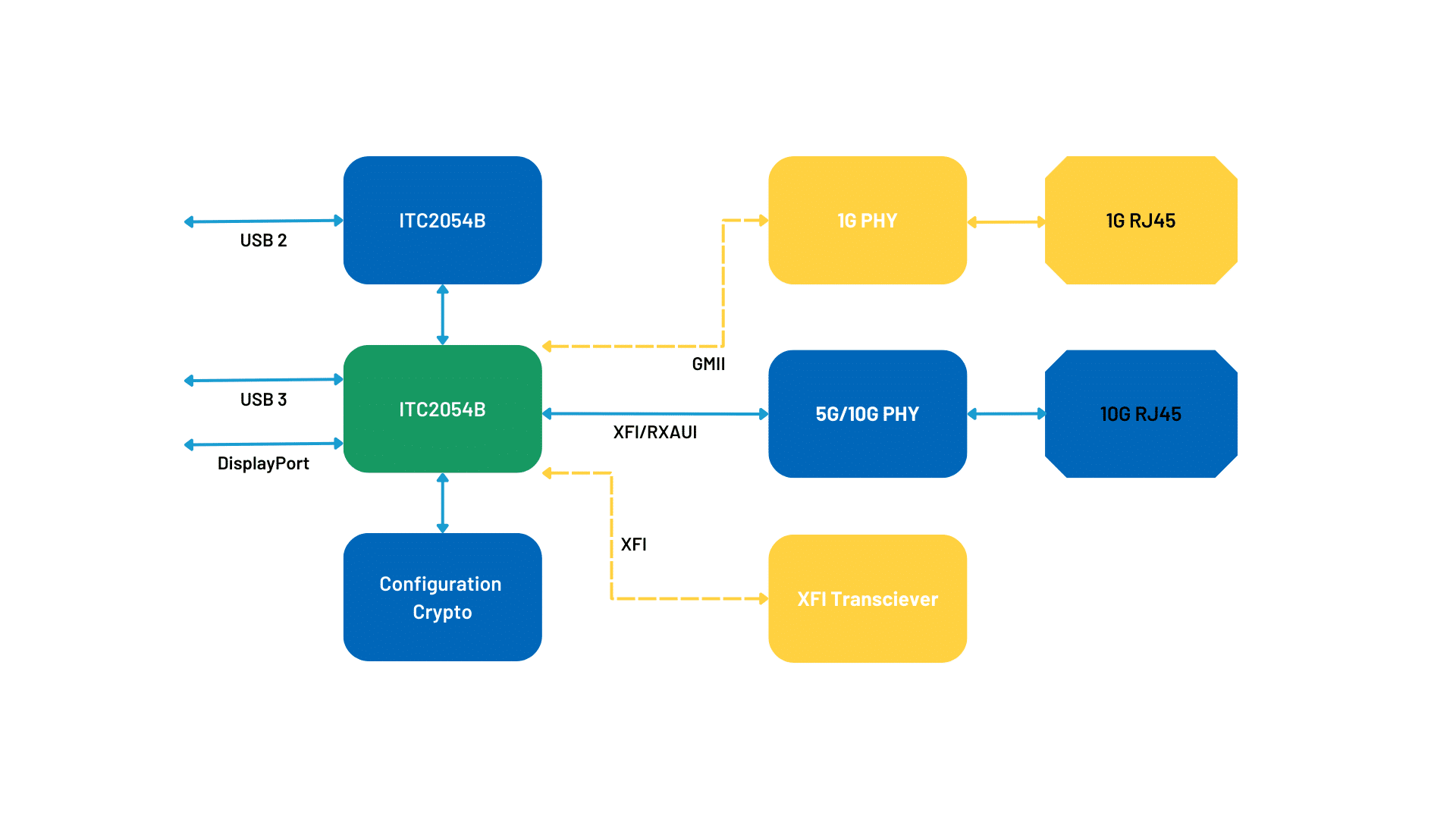

Note: Dotted lines and Orange Blocks indicate Optional interfaces

Features

Extension up to 100m over CAT and 200m over fiber optic cable
- 5Gbps, 6.25Gbps, and 10Gbps modes
- Point-to-point or over network compatible with 10G and N-BaseT (5Gbps, 10Gbps) networks
- RXAUI, and XFI interfaces
- Switchable over a network
DisplayPort 1.4 interface
- RBR, HBR, HBR2 and HBR3 support
- Supports resolutions and refresh rates up to DCI 4K (4096×2160) 60Hz
- Supports 6, 8, 10Bpc RGB and YC_BC_R 4:4:4 and 4:2:2 Color
- HDCP 2.2
- 8 channel 16-24bit PCM audio, 32-192kHz sampling
- EDID override
- As low as 31 lines of latency
USB interface
- Transparent USB 3 5Gbps support
- Auto negotiates highest rates to devices and hosts
- USB hub support
- Control, Interrupt, Bulk, and Isochronous transaction support
Peripheral Ethernet and RS232 side channels
- Ethernet 100/1000Mbps interfaces (RGMII) for network devices and pass through
- RS232 side channel up to 115200 baud, TX and RX only
Flexible control options
- I²C slave interface for local control
- Statistics available for troubleshooting and monitoring
- Network APIs for network control
- Programmable over the network
Dual mode functionality
- Interchangeable transmit/receive
