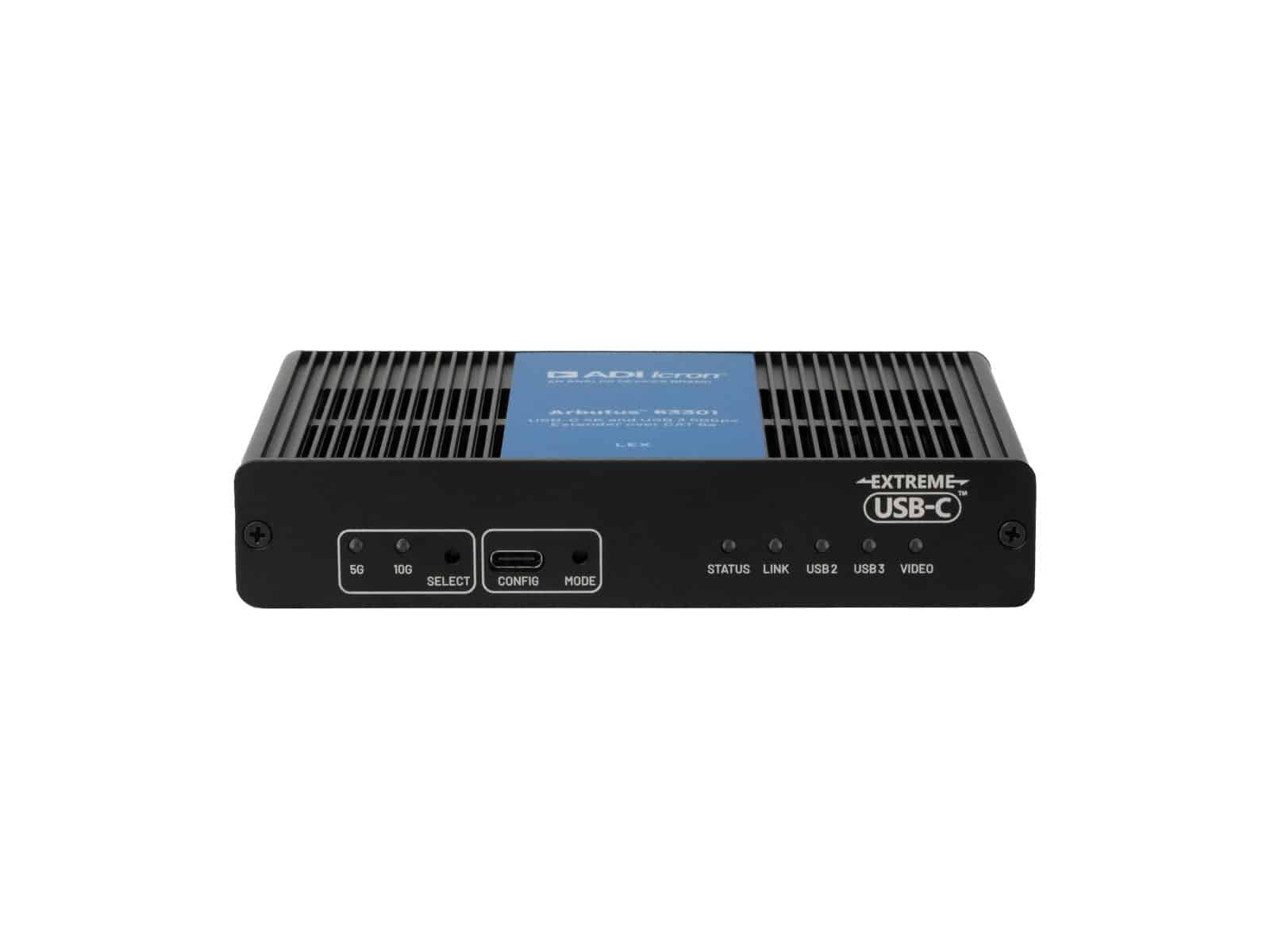

Arbutus 63301

1-Port USB-C 4K Video and USB 3 5Gbps, 100m CAT 6a Extender

The award-winning Icron Arbutus™ 63301 is a USB-C extension system that transmits USB 3 and 4Kp60 video up to 100m over a single CAT 6a cable. Supporting DisplayPort Alt mode and all USB transaction types, it offers a reliable, hubless solution for high-performance AV and USB connectivity.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

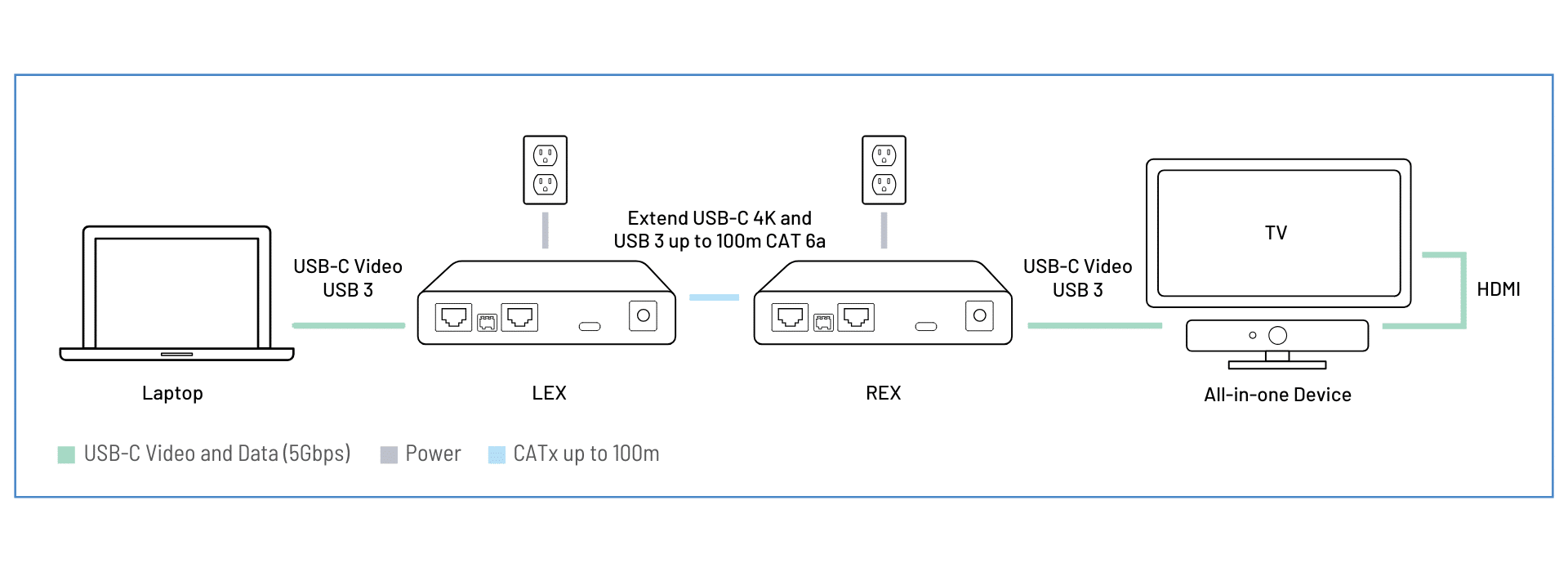

The award-winning Icron Arbutus 63301 is an all-in-one video and USB extension system. Utilizing a single USB-C port, the 63301 can extend 4K video and USB 3 over a CAT 6a cable offering a true one cable extension solution.

Unique to this model is the ability to support DP Alt mode on a USB-C connection supporting up to 4Kp60 4:4:4 simultaneously with USB 3 5Gbps. Within USB all transaction types are supported with no hub tiers consumed. The Arbutus 63301 extends up to 100m point-to-point with DC Power applied at the remote end.

Applications

Conference Rooms
KVM
Video Matrix Systems

Features

Single-Cable USB-C and Video Extension: Extends USB 3 (5Gbps) and DisplayPort 4Kp60 4:4:4 video up to 100 meters over standard CAT 6a.

DisplayPort Alt Mode Support: Supports up to 2-lane HBR3 DisplayPort Alt Mode for high-resolution video transmission up to 4Kp60.

HDCP 2.2 Compliant: Enables secure transmission of protected video content.

Integrated Control Channels: Includes 1Gbps Ethernet and 115200 baud RS232 pass-through for flexible system integration and control.

Broad USB Device Support: Works with all USB 3.2, USB 2.0, and USB 1.1 devices; supports all USB transaction types including Control, Bulk, Interrupt, and Isochronous.

Hubless Architecture: Maintains native device performance without consuming USB hub tiers.

Remote Power Delivery: Provides up to 15W (5V 3A) at the remote end to power USB-C devices directly.

ExtremeUSB-C™ Technology: Transparent USB 3-2-1 extension, supports all USB transaction types and devices.

Plug and Play: No software drivers required, compatible with all major operating systems.

Specifications

Range (Point-to-Point)

Point-to-Point: Up to 100m (328ft) over CAT 6a cable

USB Device Support

USB Bandwidth: Up to 5Gbps
Device Compatibility: All Devices Types and Classes (Control, Interrupt, Bulk, Isochronous)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Maximum Devices: Supports up to 30 devices

Video Support

Maximum Resolution: 4196×2160
Color: RGB 8/10, YCbCr 4:4:4, 4:2:2
Lane Count/Rate: 4, 2 or 1 Lane operation up to HBR3 8.1Gbps
Control: DisplayPort MCCS
EDID: EDID override supported
HDCP: Version 2.2

Local Extender (LEX)

USB connector: 1x USB-C Port
Link Connector: 1x RJ45 Ethernet Link Port
Power Input: 5V DC 3A Barrel Jack
Dimensions (WxDxH): 137mm x100.0mm x 26mm (5.4”x3.9”x 1.0”)
Weight: 300 g (0.7lbs.)
Enclosure Material: Black Anodized Aluminum

Remote Extender (REX)

USB connector: 1x USB-C Port
Link Connector: 1x RJ45 Ethernet Link Port
Power Input: 5V DC 5A Barrel Jack
Dimensions (WxDxH): 137mm x100.0mm x 26mm (5.4”x3.9”x 1.0”)
Weight: 300 g (0.7lbs.)
Enclosure Material: Black Anodized Aluminum

Hub Tiers Used: 0

Environmental

Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Relative Humidity:
- 20-80% Operating
- 10-90% Storage, non-condensing

Compliance

FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1, NRTL, RCM, and UKCA

In The Box

The Arbutus 63301 extender system includes:

1x Arbutus 63301 LEX or REX
1x International Power Adapter
1x Region Specific Power Cord
1x Compliance and Warranty Insert
2-Year Warranty

NOTE: USB cables not included

Packaged shipping weight:

803g (1.8lbs.)

Part Number

NOTE: A matching Arbutus LEX or REX must be purchased separately to complete the system.

Part Number	Name	Description
00-00491	Icron USB-C Arbutus 63301 LEX – NA	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender LEX, Black, 100-240V Power Adapter – NA
00-00492	Icron USB-C Arbutus 63301 LEX – EU	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender LEX, Black, 100-240V Power Adapter – EU
00-00493	Icron USB-C Arbutus 63301 LEX – UK	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender LEX, Black, 100-240V Power Adapter – UK
00-00494	Icron USB-C Arbutus 63301 LEX – AU	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender LEX, Black, 100-240V Power Adapter – AU
00-00495	Icron USB-C Arbutus 63301 LEX – JP	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender LEX, Black, 100-240V Power Adapter – JP
00-00496	Icron USB-C Arbutus 63301 REX – NA	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender REX, Black, 100-240V Power Adapter – NA
00-00497	Icron USB-C Arbutus 63301 REX – EU	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender REX, Black, 100-240V Power Adapter – EU
00-00498	Icron USB-C Arbutus 63301 REX – UK	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender REX, Black, 100-240V Power Adapter – UK
00-00499	Icron USB-C Arbutus 63301 REX – AU	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender REX, Black, 100-240V Power Adapter – AU
00-00500	Icron USB-C Arbutus 63301 REX – JP	1-Port 100m CAT 6a USB-C 4K + USB 3 Extender REX, Black, 100-240V Power Adapter – JP
10-00536	USB Mounting Kit – Black	USB Extender Mounting Kit (Black) Each kit includes: 2 brackets, 4 locking washers and 4 (M2.5x8mm) Phillips raised cheese head screws (Order: 1 kit per local or remote extender; 2 kits per system)
