EL5363

HDMI + USB 2.0 100m CAT 5e/6/7 Extender System

Icron EL5363 USB + Video Extender delivers robust HDMI and USB 2.0 extension up to 100 meters over a single CAT 5e/6/7 cable. Ideal for proAV, digital signage, and industrial applications, it supports full HD and 4K video resolutions with seamless USB connectivity.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The EL5363 KVM Extender from Icron leverages cutting-edge technology to extend HDMI video and USB 2.0 signals up to 100 meters (328 feet) over a single CAT 5e/6/7 cable. This versatile extender supports high-definition video resolutions including 1080p and 4Kp30, and provides full USB 2.0 functionality, making it perfect for applications that require high-quality video and reliable USB connections.

This system supports advanced HDMI features such as Deep Color, CEC, and HDCP pass-through, ensuring a rich visual experience without video degradation even at the maximum distance. It is well-suited for Pro AV setups, interactive digital signage, medical imaging, and other environments where high performance and long-distance signal extension are critical.

Applications

Medical Imaging
High-end Home Theater
Pro AV
Interactive Digital Signage

Features

Long-Distance Connectivity: Extend both HDMI video and USB 2.0 signals up to 100 meters (328 feet) using a single CAT 5e/6/7 cable.

High-Definition 4K Video: Enjoy uncompressed HD video with resolutions up to 1080p and 4Kp30, including Deep Color and 3D support.

Versatile USB Support: Connect a wide range of USB 2.0 and 1.1 devices including keyboards, mice, flash drives, and more, with speeds up to 40Mbps.

Seamless Integration: True plug-and-play operation with no additional drivers required, compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Flexible Mounting: Mount units onto walls, desks, trays or 19″ racks using optional mounting kit.

Robust Design: Built with durable materials and strong ESD/EFT protection for reliable operation in various environments.

Specifications

Range

Direct Connect: Up to 100m (328 ft) over a single CAT 5e/6/7 cable

Video

Resolution: High Definition 1080p, 1920 x 1200, 4K
Color: 36-bit, Deep Color, and x.v. Color
Depth: 2D and 3D
Latency: Less than 1ms

USB Speeds

USB 2.0: Up to 40Mbps
USB 1.1: Up to 12Mbps

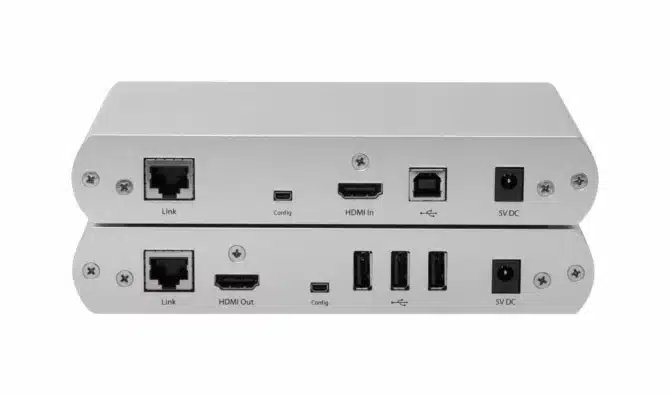

Local Extender (LEX)

Video Connector: 1x HDMI
USB Connector: 1x USB Type B Port
Link Connector: 1x RJ45
Power Supply: 100-240V AC Input, 5V DC Output
Enclosure Material: Silver Anodized Aluminum
Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
Weight:423 g (0.93 lbs.)

Remote Extender (REX)

Video Connector: 1x HDMI
USB Connectors: 3x USB Type A Ports
Link Connector: 1x RJ45
Available Current: 500mA for each USB Port
Power Supply: 100-240V AC Input, 5V DC Output
Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
Weight:434 g (0.96 lbs.)

Hub Tiers Used: 1

Environmental

Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: +20% to 80% relative humidity, non condensing

Compliance

FCC (Class A), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The EL5363 KVM extender system includes:

Local Extender (LEX)
Remote Extender (REX)
USB cable
HDMI cable
2x Power Adapters
2x Country Specific Power Cord
Quick Start Guide
2-year Warranty

Packaged shipping weight:

2359 g (5.2 lbs.)

Part Number

Part Number	Name	Description
00-00386	EL5353-NA	HDMI+USB 2.0 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V NA Power Cord
00-00387	EL5363-EU	HDMI+USB 2.0 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V EU Power Cord
00-00388	EL5363-AU	HDMI+USB 2.0 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V AU Power Cord
00-00389	EL5363-UK	HDMI+USB 2.0 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V UK Power Cord
00-00390	EL5363-JP	HDMI+USB 2.0 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V JP Power Cord
00-00287	KVM Mounting Kit	Four Brackets for EL/VU Series
