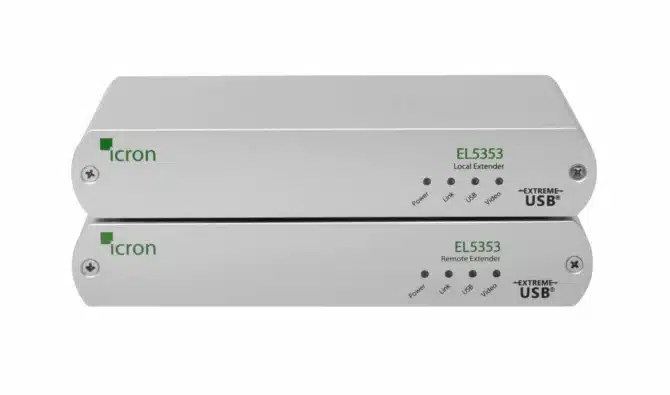

EL5353

DVI + USB 2.0 100m CAT 5e/6/7 Extender System

Icron EL5353 USB + Video Extender System utilizes advanced technology to extend both DVI video and USB 2.0 connections up to 100 meters over a single CAT 5e/6/7 cable.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The EL5353 KVM extender from Icron is designed to meet the demanding needs of high-definition video and USB extension applications. It allows a computer to be placed up to 100 meters (328 feet) away from a workstation using a single CAT 5e/6/7 cable. This extender supports full HD video with a resolution of 1920 x 1200 and 24-bit color depth, while also providing USB 2.0 throughput up to 40Mbps.

Ideal for professional audio/visual setups, digital signage, medical environments, and industrial applications, the EL5353 ensures high-quality video and reliable USB connectivity even at the maximum extension distance. The system is robust enough to handle various USB peripherals and maintains excellent video quality throughout the distance.

Applications

Pro AV
Security
Medical
Interactive Digital Signage
Industrial Environments

Features

Extended Reach: Connect your devices up to 100 meters (328 feet) away from your computer, giving you flexibility in where you place your equipment.

Clear, High-Quality Video: Enjoy sharp and vibrant visuals with full HD resolution (1920 x 1200) and 24-bit color depth, perfect for detailed images and video.

Fast USB Performance: Transfer data quickly with USB 2.0 speeds up to 40Mbps, supporting keyboards, mice, and other USB devices without lag.

Easy Setup: No need for drivers—works with Windows®, macOS™, Linux®, and ChromeOS™. Just plug it in and start using it right out of the box.

Flexible Mounting: Mount units onto walls, desks, trays or in 19″ racks using optional mounting kit to keep your workspace neat and organized.

Durable and Reliable: Designed for tough environments with strong ESD/EFT protection to ensure dependable performance.

Specifications

Range

Direct Connect: Up to 100m (328 ft) over a single CAT 5e/6/7 cable

Video

Resolution: High Definition 1920 x 1200
Color Depth: 24-bit color depth
Latency: Less than 1ms

USB Speeds

USB 2.0: Up to 40Mbps
USB 1.1: Up to 12Mbps

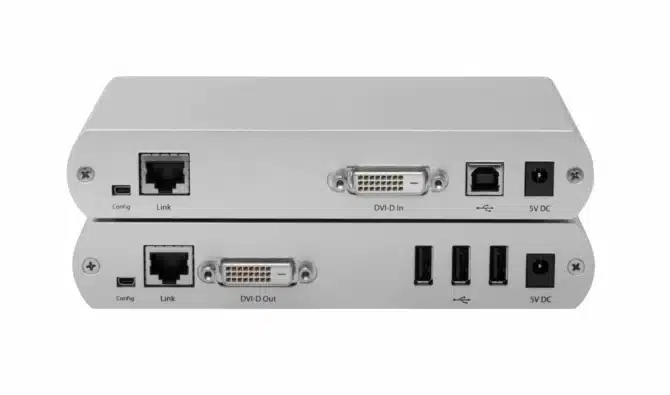

Local Extender (LEX)

Video Connector: 1x DVI
USB Connector: 1x USB Type B Port
Link Connector: 1x RJ45
Power Supply: 100-240V AC Input, 5V DC Output
Enclosure Material: Silver Anodized Aluminum
Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
Weight:423 g (0.93 lbs.)

Remote Extender (REX)

Video Connector: 1x DVI
USB Connectors: 3x USB Type A Ports
Link Connector: 1x RJ45
Available Current: 500mA for each USB port
Power Supply: 100-240V AC Input, 5V DC Output
Enclosure Material: Silver Anodized Aluminum
Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
Weight:434 g (0.96 lbs.)

Hub Tiers Used: 1

Environmental

Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: +20% to 80% relative humidity, non condensing

Compliance

FCC (Class A), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The EL5353 KVM extender system includes:

Local Extender (LEX)
Remote Extender (REX)
USB cable
DVI cable
2x Power Adapters
2x Country Specific Power Cord
Quick Start Guide
2-year Warranty

Packaged shipping weight:

2359 g (5.2 lbs.)

Part Number

Part Number	Name	Description
00-00381	EL5353-NA	DVI+USB 2.0 resolution 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V NA Power Cord
00-00382	EL5353-EU	DVI+USB 2.0 resolution 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V EU Power Cord
00-00383	EL5353-AU	DVI+USB 2.0 resolution 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V AU Power Cord
00-00384	EL5353-UK	DVI+USB 2.0 resolution 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V UK Power Cord
00-00385	EL5353-JP	DVI+USB 2.0 resolution 1920×1200 100m single CAT 5e/6/7 KVM Extender System, 100-240V JP Power Cord
00-00287	KVM Mounting Kit	Four Brackets for EL/VU Series
