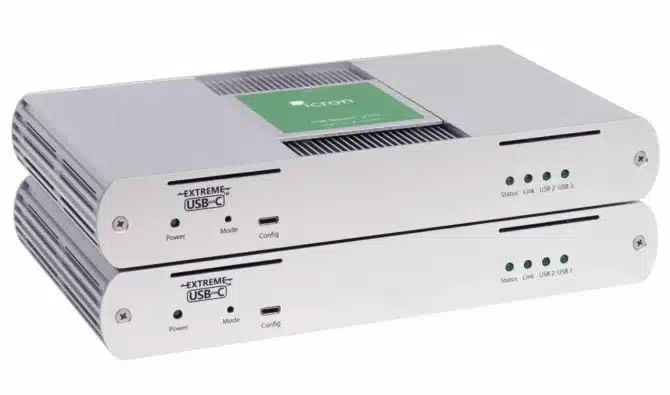

Raven 3104

4-Port USB 3.1 100m CAT 6a/7 Extender System

Icron Raven™ 3104 allows users to extend USB 3.2 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 peripherals across a point-to-point connection up to 100m over a single CAT 6a/7 cable.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron USB 3-2-1 Raven™ 3104 allows users to extend multiple USB device types seamlessly across a point-to-point connection. Supporting USB 3-2-1 devices, this extender is perfect for high-resolution USB 3.2 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, and audio devices. With a maximum distance of 100 meters (328 feet) over a CAT 6a/7 cable, it maintains full bandwidth for all connected devices.

The Raven 3104 is plug-and-play, requiring no software drivers, and is compatible with all major operating systems: Windows®, macOS™, Linux®, and ChromeOS™. Additionally, this extender is FCC and CE Class B certified, ensuring compliance with industry standards.

Applications

Remote Storage
Security & Monitoring
Video Matrix Systems
Conferencing Cameras
Medical Device Connectivity

Features

Extended Range: Achieve reliable USB connections up to 100 meters over CAT 6a/7 cabling, perfect for large conference rooms and remote setups.

High-Speed Data Transfer: Enjoy data rates of up to 5Gbps, suitable for high-resolution video and data-intensive applications.

Versatile Compatibility: Supports USB 3-2-1 devices simultaneously, making it an ideal solution for various peripherals.

Powerful USB Hub: Integrated 4-port USB 3.2 Gen 1 hub provides up to 1.2A (6W) per port, catering to power-hungry devices.

Easy Installation: True plug-and-play functionality with no software drivers required simplifies setup and deployment.

Specifications

Range

Direct Connect: Up to 100m (328 ft) over CAT 6a/7 cable

USB Speeds

USB 3.2: Up to 5Gbps
USB 2.0: Up to 480Mbps
USB 1.1: Up to 12Mbps

Local Extender (LEX)

1x USB 3.2 Gen 1 Type B Port
1x RJ45 Ethernet 100/1000 Port
1x RJ45 Ethernet Link Port
24V 1A DC Locking Jack
Enclosure Material: Silver Anodized Aluminum
Mounting: 4 surface mounting holes or optional mounting kit is available
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
Weight: 920 g (2.03 lbs.)

Remote Extender (REX)

4x USB 3.2 Gen 1 Type A Ports
1x RJ45 Ethernet 100/1000 Port
1x RJ45 Ethernet Link Port
24V 2.71A DC Locking Jack
Available Current: Up to 1.2A (6W) per USB Port
Enclosure Material: Silver Anodized Aluminum
Mounting: 4 surface mounting holes or optional mounting kit is available
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
Weight: 990 g (2.18 lbs.)

Hub Tiers Used: 2

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The Raven 3104 extender system includes:

Local Extender (LEX)
Remote Extender (REX)
USB 3.2 Gen 1 Cable
LEX 24V DC 1A International Power Adapter
REX 24V DC 2.71A International Power Adapter
2x Country Specific Power Cords
Quick Start Guide
2-year Warranty

Packaged shipping weight:

2994 g (6.6 lbs.)

Part Number

Part Number	Name	Description
00-00421	Icron USB 3-2-1 Raven 3104 – NA	4-Port USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – NA
00-00422	Icron USB 3-2-1 Raven 3104 – EU	4-Port USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – EU
00-00423	Icron USB 3-2-1 Raven 3104 – UK	4-Port USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – UK
00-00424	Icron USB 3-2-1 Raven 3104 – AU	4-Port USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – AU
00-00425	Icron USB 3-2-1 Raven 3104 – JP	4-Port USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – JP
10-00620	Raven Silver Mounting Kit	Raven/Maverick Silver Mounting Kit, Set of 2 Mounting Brackets, Bolts included
