Starling 3251C Series

Features

Innovative Design: World’s first USB 3.2 Gen 1 extender utilizing custom CM or Plenum fire-rated cable for secure and reliable connections.

High-Speed Data Transfer: Supports USB 3.2 Gen 1 data rates up to 5Gbps with full bandwidth for 2.0 and 1.1 devices.

Short-Distance Extension: Extends USB device up to 10 meters (32.8 feet) using a single CM or Plenum-rated cable.

Award-Winning Performance: Recipient of the 2022 SVC Innovative Products Award and the 2021 BEST Award.

Plug and Play: No software drivers needed for seamless integration with Windows®, macOS™, Linux®, and ChromeOS™.

Specifications

Range

• Point-to-point: 10 meters (32.8 feet) using included custom cable

USB Speeds

• USB 3.2: Up to 5Gbps
• USB 2.0: Up to 480Mbps
• USB 1.1: Up to 12Mbps

USB Device Support

• USB Bandwidth: Up to 5Gbps
• Device Compatibility: All Devices Types and Classes (Control, Interrupt, Isochronous, and Bulk)
• Maximum Devices: Supports up to 30 devices including hubs

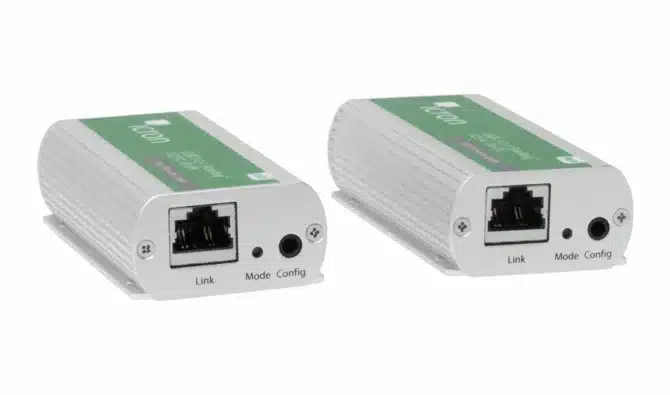

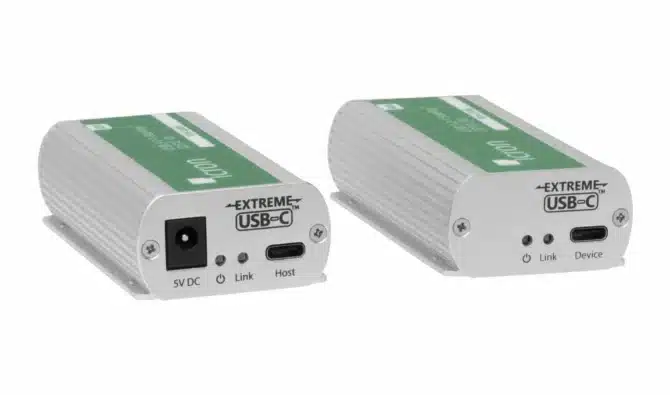

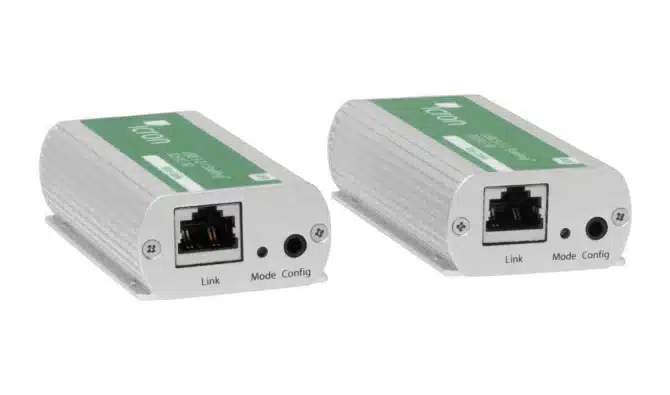

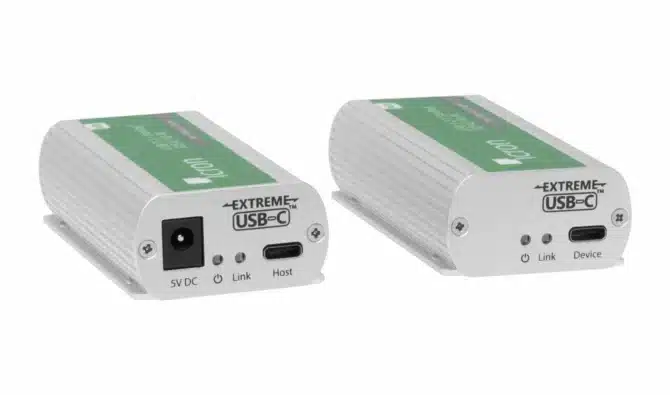

Local Extender (LEX)

• USB Connector: 1x USB 3.2 Gen 1 Type-C Port
• Link Connector: 1x ARJ45 Link Port
• Maximum Supplied Power: 15W (5V 3A) USB or Self-Powered
• 5V 3A DC Jack (Power Supply sold separately)
• Enclosure Material: Silver Anodized Aluminum
• Dimensions: 86 x 45 x 24mm (3.4″ x 1.8″ x 0.9″)
• Weight: 80 g (0.18 lbs.)
• Mounting: 4 surface mounting holes or optional mounting kit available

Remote Extender (REX)

• USB Connector: 1x USB 3.2 Gen 1 Type-C Port
• Link Connector: 1x ARJ45 Link Port
• Available Current: Up to 900mA
• Enclosure Material: Silver Anodized Aluminum
• Dimensions:  86mm x 45mm x 24mm (3.4″ x 1.8″ x 0.9″)
• Weight: 90 g (0.20 lbs.)
• Mounting: 4 surface mounting holes or optional mounting kit available

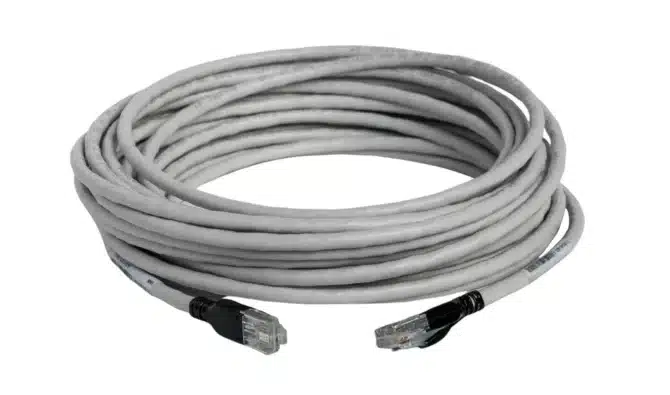

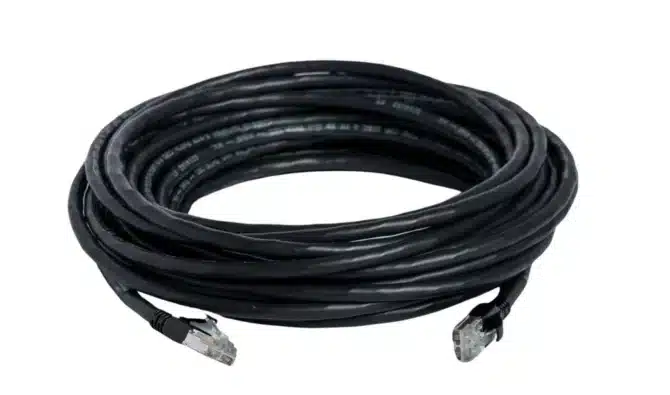

Custom Link Cable

• 10m (33 ft) CM or Plenum-Rated Active Copper Cable
• Safety Rating: Plenum or CM versions available
• Bend Radius (min): 35mm (1.4”)
• Conduit Diameter (min): 19mm (3/4″ conduit)
• ARJ45 Connector Width: 13mm (0.5”)
• Cable Diameter: 7.6mm (0.3”)

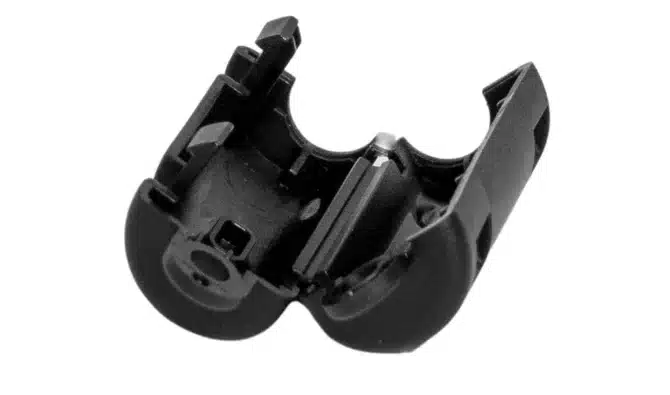

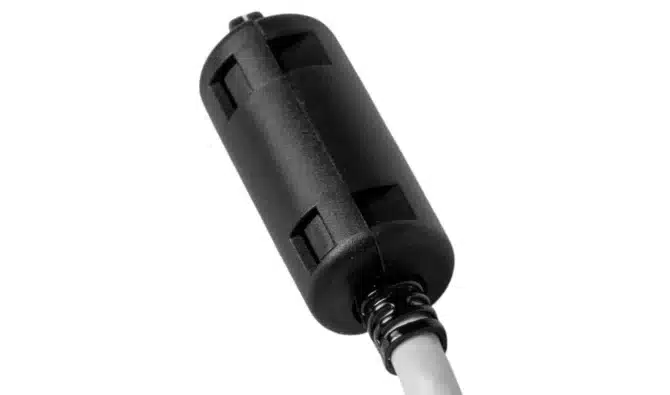

• Cable Pulling Eye Tool Width: 18mm (0.7”)

Hub Tiers Used: 1

Environmental

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class A), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The Starling 3251C extender system includes:

• Local Extender (LEX)
• Remote Extender (REX)
• USB 3.2 Gen 1 USB-C Cable
• Custom Link Cable (10m, CM or Plenum-Rated)
• Cable Pulling Eye Tool
• Quick Start Guide
• 2-year Warranty

Packaged shipping weight:

• 1110 g (2.45 lbs.)

Part Number
