Spectra 3022

2-Port USB 3.0 100m Multimode Fiber Extender System

Icron Spectra™ 3022 is a 2-port USB 3.0 SuperSpeed extension solution, enabling USB 3.0 connections at up to 5Gbps over 100m (328 ft) of multimode fiber optic cable.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Spectra™ 3022 USB 3.0 Extender is engineered to extend USB 3.0 connections up to 100 meters (328 feet) over multimode fiber optic cable, providing a reliable solution for high-speed data transfer applications. With its two locking USB 3.0 ports, the Spectra 3022 ensures secure and stable connections, delivering up to 900mA of power per port, perfect for USB 3.0 Vision cameras and other high-bandwidth devices.

This extender supports speeds of up to 5Gbps, making it suitable for applications that demand high data throughput, such as machine vision, security, and large file transfers. The Spectra 3022 does not support backward compatibility with USB 2.0 or 1.1 devices. For full backward compatibility, consider the Raven 3124, which extends USB 3.0, 2.0, and 1.1 devices up to 200 meters.

Applications

Read Robotics Tomorrow eMagazine article: Extending USB 3.0 Over Fiber For Machine Vision Applications

Machine Vision (AIA USB3 Vision specification)
Security
Storage
Post-production editing
Large file transfers

Features

Extended Range: Reliable USB 3.0 extension up to 100 meters (328 feet) over multimode fiber, supporting high-speed data transfer.

High-Speed Performance: Achieve USB 3.0 throughput of up to 5Gbps for demanding applications, with a focus on USB 3.0 Vision cameras and large file transfers.

Secure Connections: Features rugged locking USB and power connectors to ensure stable and secure connections in industrial environments.

Robust Design: Comes with pre-drilled mounting holes for easy bracket mounting, and includes SFP multimode transceiver modules for enhanced performance.

Plug-and-Play: True plug-and-play functionality with no software drivers required, compatible with Windows®, macOS™, Linux®, ChromeOS™.

Specifications

Range*

OM2 Multimode Fiber: Up to 50m (165 ft)
OM3 Multimode Fiber: Up to 100m (328 ft)

USB Speeds

USB 3.0: Up to 5Gbps (not backward compatible with USB 2.0/1.1)

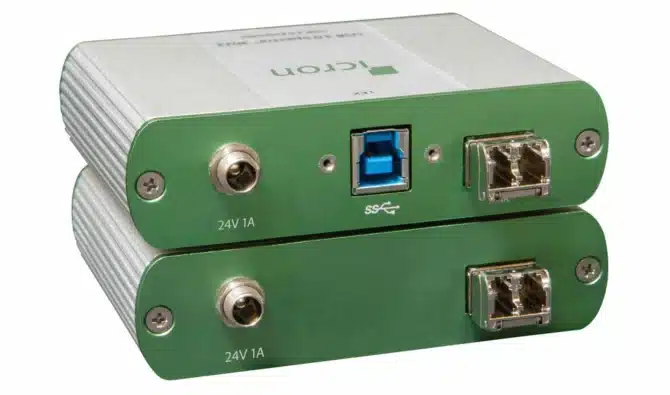

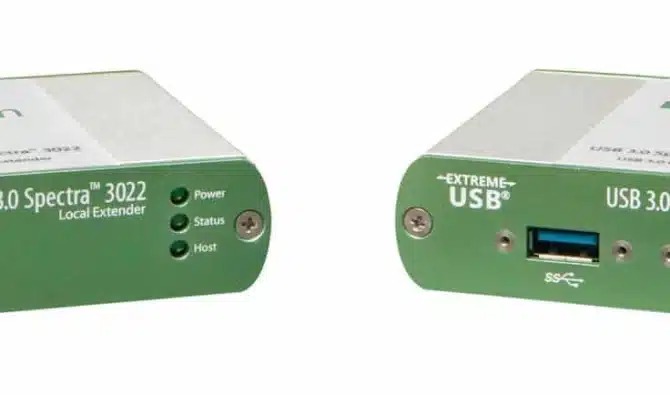

Local Extender (LEX)

USB Connector: 1x USB 3.0 Type B Locking Port
Link Connector: 1x Duplex LC Connector
Enclosure Material: Anodized Aluminum
Dimensions: 100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
Weight: 202 g (0.45 lbs.)

Remote Extender (REX)

USB Connectors: 2x USB 3.0 Type A Locking Ports
Link Connector: 1x Duplex LC Connector
Power Connector: 24V DC, 1A, Locking, 2.1 mm, center-positive
Available Current: 900mA for each USB Port
Power Supply: 100-240V AC Brick, Locking
Enclosure Material: Anodized Aluminum
Dimensions: 100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
Weight: 211 g (0.47 lbs.)

Hub Tiers Used: 2

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA
Machine Vision: Works with AIA USB3 Vision™ compliant devices

* Up to 50m with USB 3.0 storage type devices; up to 100m or more is achievable when using USB 3.0 bulk traffic cameras. For Microsoft Kinect applications, please use the Spectra™ 3001-15 active extension cable

In The Box

The USB 3.0 Spectra 3022 extender system includes:

Local Extender (LEX)
Remote Extender (REX)
SFP multimode transceiver modules
Locking Power Adapter
3.0 USB Cable
Country Specific Power Cord (North America, EU, UK, Australia, or Japan)
Quick Start Guide
Two-year Warranty

Packaged shipping weight:

948 g (2.09 lbs.)

Part Number

Part Number	Name	Description
00-00327	USB 3.0 Spectra™ 3022 – NA	2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter NA, Locking NA Power Cord
00-00328	USB 3.0 Spectra™ 3022 – EU	2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter EU, Locking NA Power Cord
00-00329	USB 3.0 Spectra™ 3022 – UK	2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter UK, Locking NA Power Cord
00-00330	USB 3.0 Spectra™ 3022 – AU	2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter AU, Locking NA Power Cord
00-00371	USB 3.0 Spectra™ 3022 – JP	2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter JP, Locking NA Power Cord
10-00406	USB Mounting Kit	Silver USB Extender Mounting Kit compatible with 2304, 2324, 2344, and 3022 Kit includes: 2 brackets, 4 locking washers and 4 (M3 x 5mm) Phillips pan head screws (Order: 1 kit per LEX or REX; 2 kits per system)
