Rover 1850

1-Port USB 1.1 85m CAT 5e/6/7 Extender System

Icron Rover®1850 extends USB 1.1 connections beyond the desktop up to 85 meters without external power adapters, ideal for keyboards, mice, game controllers and interactive whiteboards – including all SMART Boards and Promethean ActivBoards.

Overview

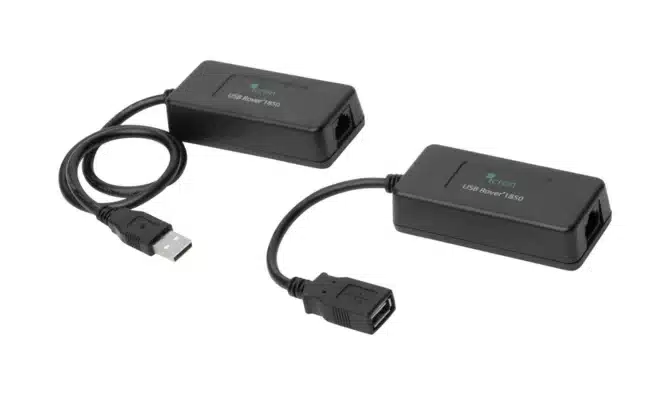

The Rover® 1850 is a versatile USB extender designed to extend USB 1.1 connections beyond the desktop up to 85 meters. It operates over standard CAT 5e, 6, or 7 cabling and provides a seamless, software-free connection for a variety of USB peripherals. The system is comprised of two units: the Local Extender (LEX) and the Remote Extender (REX). The LEX connects to the host computer via conventional USB cables, while the REX connects to the remote USB device. The use of CAT cabling ensures reliable performance even at extended distances, making it a perfect solution for applications like interactive whiteboards and digital signage.

The Rover® 1850 supports distances up to 40 meters for all USB devices and up to 85 meters for low-powered HID devices, such as keyboards and mice. With its robust design and ExtremeUSB® features, the Rover® 1850 offers a plug-and-play experience compatible with major operating systems including Windows®, macOS™, Linux®, and ChromeOS™.

Applications

  • Interactive White Board
  • KVM Extension: Keyboard and Mouse
  • Digital Signage
  • Industrial Control
  • Corporate Board Rooms: USB Device Extension

* Up to 40m for all USB devices; 85 meters is achievable for most low powered HID USB devices.

Features

Extended Range: Connect USB devices up to 85 meters (279 feet) with CAT 5e/6/7 cabling, ideal for extended reach.

Wide Compatibility: Supports a range of USB 1.1 devices, including keyboards, mice, game controllers, and interactive whiteboards.

No External Power Needed: Operates without the need for external power adapters, simplifying installation and reducing clutter.

High Reliability: Provides up to 400mA to USB devices, ensuring stable operation for both full-speed (12Mbps) and low-speed (1.5Mbps) USB devices.

Robust Design: Built to withstand industrial environments with ESD and EFT immunity, and compliant with FCC/CE standards.

Plug and Play: True plug-and-play functionality with no software drivers required; compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Specifications

Range

  • Reach: Up to 85m* (279 ft)

Local Extender (LEX)

  • USB Connector: 1x USB Type A Port
  • Link Connector: 1x RJ45
  • Pig Tail Length: 45.7cm (18″)
  • Dimensions: 85mm x 40mm x 25mm (3.34″ x 1.57″ x 0.98″)
  • Weight: 62 g (0.14 lbs.)

Remote Extender (REX)

  • USB Connector: 1x USB Type A Port
  • Link Connector: 1x RJ45
  • Maximum Current Available: 400mA when LEX is supplied with 700mA
  • Pig Tail Length: 15.2cm (6″)
  • Dimensions: 85mm x 40mm x 25mm (3.34″ x 1.57″ x 0.98″)
  • Weight: 52 g (0.11 lbs.)

Hub Tiers Used: 0

Environmental

  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -20°C – 70°C (-4°F – 158°F)
  • Operating Humidity: +20% ~ 80% relative humidity, non condensing
  • Storage Humidity: 10-90%  relative humidity, non-condensing

Compliance

  • FCC (Class A), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, UKCA, CPSIA, and Flammability V-1

* Up to 40m for all USB devices; 85 meters is achievable for most low powered HID USB devices.

In The Box

The USB 1.1 Rover® 1850 system includes:

  • Local Extender (LEX) module
  • Remote Extender (REX) module
  • Quick Start Guide
  • 3-year warranty

Part Number

Part Number Name Description
00-00301  USB 1.1 Rover®1850 1-Port 85m CAT 5e/6/7 Bus-Powered USB Extender System
