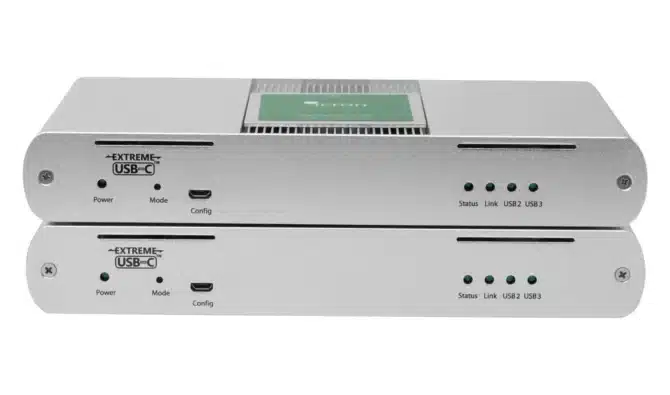

Raven 3124

4-Port USB 3.1, 200m Multimode Fiber Extender System

Icron Raven™ 3124 USB 3.2 Gen 1 extender with ExtremeUSB-C™ technology extends all USB 3-2-1 devices simultaneously up to 200 meters over Multimode Fiber. It’s perfect for extending USB 3.2 Gen 1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and/or any other USB 3-2-1 device.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron USB 3-2-1 Raven™ 3124 is a versatile USB 3.2 Gen 1 extender designed to support a wide range of USB devices over long distances. Leveraging ExtremeUSB-C™ technology, this device extends USB connections up to 200 meters using a single duplex Multimode Fiber cable. Perfect for environments requiring high data rates and robust isolation, such as security monitoring, video matrix systems, or medical device connectivity, this system provides plug-and-play functionality and compatibility with all major operating systems.

Applications

Remote Storage
Security & Monitoring
Video Matrix Systems
Conferencing Cameras
Medical Device Connectivity

Features

Extended Range: Supports USB 3-2-1 devices up to 200 meters over OM3 Multimode Fiber.

High Data Rates: USB 3.2 Gen 1 speeds of up to 5Gbps, with backward compatibility to USB 2.0 (480Mbps) and USB 1.1 (12Mbps).

Integrated Hub: 4-port USB 3.2 hub supporting simultaneous connections with up to 1.2A (6W) per port.

No Software Needed: True plug-and-play functionality with no drivers required for Windows®, macOS™, Linux®, and ChromeOS™.

Compliance: FCC and CE (Class B) certified, offering electrical isolation for sensitive equipment.

Specifications

Range

Direct Connect: Up to 200m (656 ft) over OM3 or better Multimode Fiber

USB Speeds

USB 3.2: Up to 5Gbps
USB 2.0: Up to 480Mbps
USB 1.1: Up to 12Mbps

USB Device Support

USB Bandwidth: Up to 5Gbps
Device Compatibility: All Devices Types and Classes (Control, Interrupt, and Bulk)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Maximum Devices: Supports up to 30 devices

Local Extender (LEX)

USB Connector: 1x USB 3.2 Gen 1 Type B Port
1x MMFDuplex LC
Power Supply: 24V 1A DC Locking Jack
Enclosure Material: Silver Anodized Aluminum
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
Weight: 920 g (2.03 lbs.)
Mounting: 4 surface mounting holes or optional mounting kit available

Remote Extender (REX)

USB Connector: 4x USB 3.2 Gen 1 Type A Ports
1x MMF Duplex LC
Power Supply: 24V 2.71A DC Locking Jack
Available Current: up to 1.2A (6W) per USB port
Enclosure Material: Silver Anodized Aluminum
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
Weight: 990 g (2.18 lbs.)
Mounting: 4 surface mounting holes or optional mounting kit available

Hub Tiers Used: 2

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The Raven 3124 extender system includes:

Local Extender (LEX)
Remote Extender (REX)
USB 3.2 Gen 1 Cable
LEX 24V DC 1A International Power Adapter
REX 24V DC 2.71A International Power Adapter
2x Country Specific Power Cords
Quick Start Guide
2-year Warranty

Packaged shipping weight:

2.67 kg (5.87 lbs.)

Part Number

Part Number	Name	Description
00-00437	Icron USB 3-2-1 Raven 3124 – NA	4-Port USB 3-2-1 200m MMF PTP Extender System, Silver, 100-240V Power Adapters – NA
00-00438	Icron USB 3-2-1 Raven 3124 – EU	4-Port USB 3-2-1 200m MMF PTP Extender System, Silver, 100-240V Power Adapters – EU
00-00439	Icron USB 3-2-1 Raven 3124 – UK	4-Port USB 3-2-1 200m MMF PTP Extender System, Silver, 100-240V Power Adapters – UK
00-00440	Icron USB 3-2-1 Raven 3124 – AU	4-Port USB 3-2-1 200m MMF PTP Extender System, Silver, 100-240V Power Adapters – AU
00-00441	Icron USB 3-2-1 Raven 3124 – JP	4-Port USB 3-2-1 200m MMF PTP Extender System, Silver, 100-240V Power Adapters – JP
10-00620	Raven Silver Mounting Kit	Raven/Maverick Silver Mounting Kit, Set of 2 Mounting Brackets, Bolts included
