Spectra 3001-15

1-Port USB 3.0 15m Active Copper Extension Cable

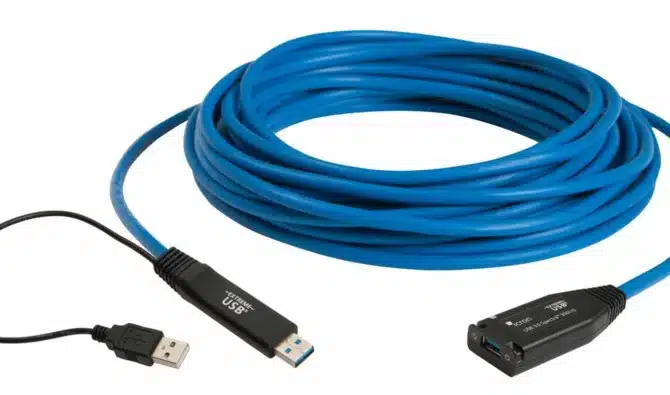

Icron Spectra™ 3001-15 is a rugged, high-performance USB 3.0 SuperSpeed active copper extension cable, designed for short-range extensions up to 15 meters. Perfect for demanding applications, it delivers up to 5Gbps throughput and provides reliable power for connected devices without needing an external power source.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The USB 3.0 Spectra™ 3001-15 is a rugged grade single-port USB 3.0 SuperSpeed active copper extension cable, a perfect short-range extension solution when up to 15 meters distance is required for your application. This cable supports throughput of 5Gbps, features a locking USB 3.0 port delivering 900mA power, and is bus powered so no external power outlet is required. This cable is suited for AIA USB3 Vision™ camera applications, and comes with a 2-year Warranty. Note: backward compatibility to USB 2.0/1.1 is not supported.

This product received a silver honor distinction from Vision Systems Design at the first annual Innovators Awards held in Chicago, IL during the Automate Show in 2015.

–

USB 3.0’s distance limit is approximately 3 meters. When up to 15 meters is required, consider the USB 3.0 Spectra 3001-15 active copper cable. This rugged bus-powered active cable supports USB 3.0 5Gbps throughputs and provides 5V/900mA without the need for an external power source. A true plug-and-play solution, the Spectra 3001-15 cable is compatible with all leading operating systems and features a locking USB port as specified by AIA USB3 Vision™. The cable is warranted for 2 years from the date of purchase. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.

–

Applications

Machine Vision (works with USB3 Vision compliant cameras and devices)
Security
Storage
Large File Transfers

Features

Extended Range: Achieves USB 3.0 extension up to 15 meters (49.21 feet) for versatile connectivity.

High-Speed Performance: Supports data transfer rates of up to 5Gbps, ensuring fast and efficient data handling.

Rugged Design: Features a durable construction with a locking USB connector and rugged grade cabling for reliable use in demanding environments.

No External Power Needed: Bus-powered design means no external power supply is required, simplifying installation and reducing clutter.

Enhanced Connectivity: Includes a second USB power connector for devices needing more power, along with a status LED to indicate power, enumeration, and over-current status.

Specifications

Range

Active Copper Cable: 15m (49.21 ft)

USB Speeds

USB 3.0: Up to 5Gbps (Not backward compatible with USB 2.0/1.1)

Local Extender (LEX)

USB Connector: 1x USB 3.0 Type A Locking Port

Remote Extender (REX)

USB Connectors: 1x USB 3.0 Type A Host Port;
1x USB Type A Power Connector (required for devices drawing more than 2.5W)

Physical

Cable Diameter: 6.9mm (0.27″)
Jacket Material: PVC
Bend Radius: 28mm (1.10″)
Mounting Slots on Device Side: Slots for Cable Tie

Power

Power Source: Bus Power
Input Power: Up to 1.4A
Available Current: 5V, 900mA

Hub Tiers Used: 1

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 170°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, UKCA, VW-1 (UL 1581)
Machine Vision: Works with AIA USB3 Vision™ compliant devices
