Ranger 2311

Features

Flexible Power Options: Power either the Local Extender (LEX) or Remote Extender (REX) as desired.

High-Speed Performance: Extends USB 2.0 connections up to 100 meters (328 feet) with data transfer rates up to 480Mbps.

Broad Compatibility: Supports all USB 2.0 and 1.1 devices including keyboards, mice, interactive whiteboards, flash drives, and more.

Mass Storage Acceleration: Enhances performance for bulk data transfers with USB 2.0 mass storage devices.

Plug-and-Play: No software drivers required; compatible with Windows®, macOS™, Linux®, and ChromeOS™..

Lightweight Design: Black ABS with rubberized coated enclosure with mounting slots for convenient pole mounting.

Specifications

Range

• Direct connect: Up to 100m (328 ft) over CAT 5e/6/7

USB Speeds

• USB 2.0: Up to 480Mbps
• USB 1.1: Up to 12Mbps

USB Device Support

• Maximum Devices: 30 devices or 4 USB hubs with 26 USB devices

Power

• Power Supply: 100-240V AC Input, 24V 1A DC Output

Local Extender (LEX)

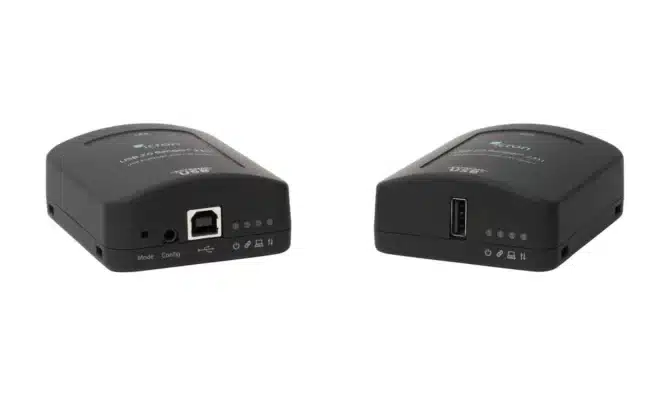

• USB Connector: 1x USB Type B Port

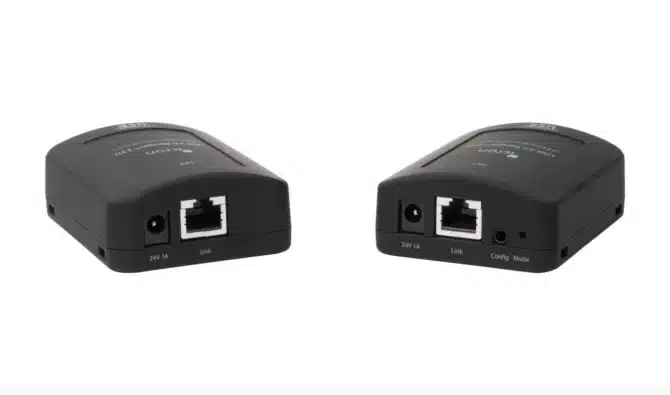

• Link Connector: 1x RJ45
• Mounting: Slots for Cable Ties
• Enclosure Material: Black ABS with Rubberized Coating
• Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6″ x 3.4″ x 1.2″)
• Weight: 80 g (0.18 lbs.)

Remote Extender (REX)

• USB Connector: 1x USB Type A Port
• Link Connector: 1x RJ45
• Available Current: Up to 1 Amp
• Mounting: Slots for Cable Ties
• Enclosure Material: Black ABS with Rubberized Coating
• Dimensions:  65.0mm x 87.5mm x 30.0mm (2.6″ x 3.4″ x 1.2″)
• Weight: 89 g (0.20 lbs.)

Hub Tiers Used: 1

Environmental

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class A), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The USB 2.0 Ranger® 2311 extender system with flexible power includes:

• Local Extender (LEX) module
• Remote Extender (REX) module
• USB 2.0 Cable
• AC Power Adapter
• Country Specific Power Cord
• Quick Start Guide
• 2-year Warranty

Packaged shipping weight:

• 775 g (1.71 lbs.)
