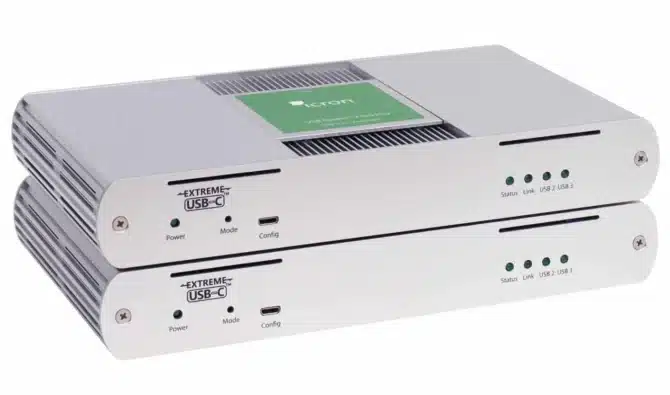

Raven 3104 Pro

4-Port USB 3.2 100m CAT 6a/7 Extender System

Icron Raven 3104 Pro features ExtremeUSB-C™ technology, extending all USB 3.2 Gen 1, 2.0 and 1.1 devices simultaneously up to 100 meters over CAT 6a/7 with enhanced support for cameras and video capture devices.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron USB 3-2-1 Raven™ 3104 Pro represents the latest advancement in USB extension technology. Designed for seamless interoperability, this extender allows simultaneous extension of USB 3.2 Gen 1, 2.0, and 1.1 protocols across a single link. The auto-negotiated communication between hosts and devices ensures maximum compatibility and ease of use.

Tailored for enhanced performance with USB 3 cameras and video capture devices, the Raven 3104 Pro supports higher frame rates and resolution than standard models. Installation is straightforward—simply plug and play with no software drivers required, making it compatible with all major operating systems: Windows®, macOS™, Linux®, and ChromeOS™. This extender is also FCC and CE Class B certified and backward compatible, accommodating a wide range of USB devices including conference cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, and USB to video converters.

Applications

Remote Storage
Security & Monitoring
Video Matrix Systems
Conferencing Cameras
Medical Device Connectivity

Features

Extended Range: Connect USB devices reliably up to 100 meters over CAT 6a/7 cabling, ideal for large environments.

High-Speed Data Transfer: Achieve data rates of up to 5Gbps, suitable for video conferencing and data-intensive applications.

Versatile Compatibility: Supports multiple USB protocols simultaneously, ensuring seamless integration with various peripherals.

Powerful USB Hub: Four available USB 3.2 Gen 1 ports with up to 1.2A (6W) power per port, supporting power-hungry devices.

Camera Optimization: Enhanced support for cameras and video capture devices, delivering superior performance for high-quality video.

Specifications

Range

Direct Connect: Up to 100m (328 ft) over CAT 6a/7 Cable

USB Speeds

USB 3.2: up to 5Gbps
USB 2.0: up to 480Mbps
USB 1.1: up to 12Mbps

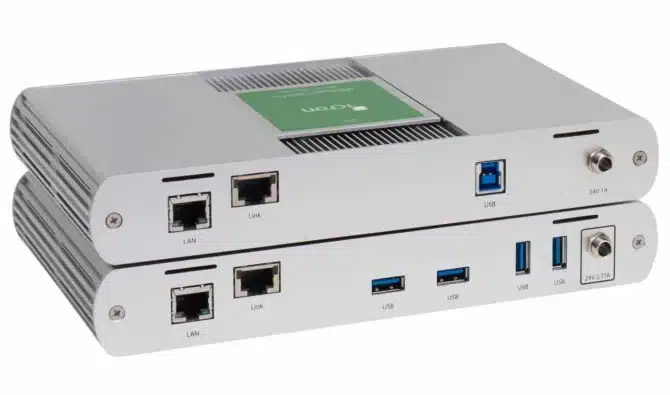

Local Extender (LEX)

1x USB 3 Type B Port
1x RJ45 Ethernet 100/1000 Port
1x RJ45 Ethernet Link Port
24V 1A DC Locking Jack
Enclosure Material: Silver Anodized Aluminum
Mounting: 4 surface mounting holes or optional mounting kit is available
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
Weight: 920g (2.03 lbs.)

Remote Extender (REX)

4x USB 3 Type A Ports
1x RJ45 Ethernet 100/1000 Port
1x RJ45 Ethernet Link Port
24V 2.71A DC Locking Jack
Available Current: up to 1.2A (6W) per USB port
Enclosure Material: Silver Anodized Aluminum
Mounting: 4 surface mounting holes or optional mounting kit is available
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
Weight: 990g (2.18 lbs.)

Hub Tiers Used: 2

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The Icron Raven 3104 Pro extender system includes:

Local Extender (LEX)
Remote Extender (REX)
USB 3.2 Gen 1 Cable
LEX 24V DC 1A International Power Adapter
REX 24V DC 2.71A International Power Adapter
2x Country Specific Power Cords
Quick Start Guide
2-year Warranty

Part Number

Part Number	Name	Description
00-00451	Icron USB 3-2-1 Raven 3104 Pro – NA	4-Port Pro USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – NA
00-00452	Icron USB 3-2-1 Raven 3104 Pro – EU	4-Port Pro USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – EU
00-00453	Icron USB 3-2-1 Raven 3104 Pro – UK	4-Port Pro USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – UK
00-00454	Icron USB 3-2-1 Raven 3104 Pro – AU	4-Port Pro USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – AU
00-00455	Icron USB 3-2-1 Raven 3104 Pro – JP	4-Port Pro USB 3-2-1 100m CAT 6a/7 PTP Extender System, Silver, 100-240V Power Adapters – JP
10-00620	Raven Silver Mounting Kit	Raven/Maverick Silver Mounting Kit, Set of 2 Mounting Brackets, Bolts included
