Ranger 2304

4-Port USB 2.0 100m CAT 5e/6/7 Extender System

Icron Ranger® 2304 is a 4-port USB 2.0 high-speed extension solution, enabling USB 2.0 connections at up to 480Mbps over 100m of CAT 5e/6/7 cabling.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron Ranger® 2304 offers an advanced solution for extending USB 2.0 connections with exceptional speed and reliability. Designed to operate over CAT 5e/6/7 cabling, it supports high-speed USB data transfer up to 480Mbps and allows for extension up to 100 meters (328 feet). This model features an integrated 4-port USB hub, providing power and connectivity for up to four devices without requiring an additional hub.

The Ranger 2304 is engineered for true plug-and-play functionality, compatible with all major operating systems including Windows®, macOS™, Linux®, and ChromeOS™. It seamlessly supports a wide range of USB peripherals such as flash drives, keyboards, mice, webcams, and interactive whiteboards, making it a versatile choice for various environments. The system maintains robust performance and high-speed connectivity, whether used in industrial, professional, or digital signage applications.

Applications

Industrial Control
KVM Extension
Professional Audio-Visual
Digital Signage
Security and Monitoring
Medical Device Connectivity
Security: Web Camera, Access Control

Features

High-Speed Performance: Extends USB 2.0 connections up to 100 meters (328 feet) with data transfer rates up to 480Mbps.

Versatile Compatibility: Supports all USB 2.0 and 1.1 devices, including low-speed and full-speed peripherals.

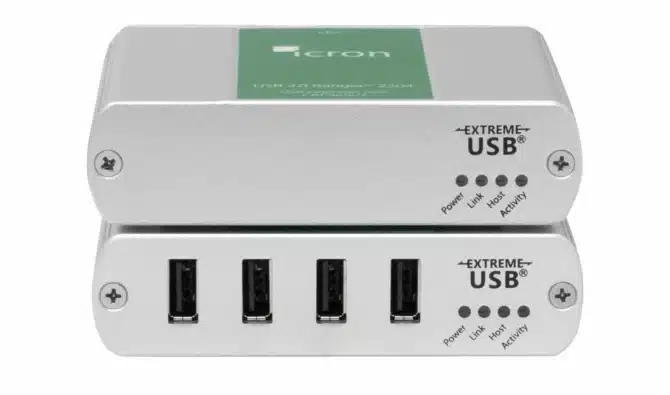

4-Port Hub: Integrated hub allows for connection of up to four USB devices without needing an additional hub.

Plug-and-Play: No software drivers required; compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Durable Design: Rugged silver anodized aluminum enclosure ensures long-lasting performance.

Specifications

Range

Direct Connect: Up to 100m (328 ft) over CAT 5e/6/7 (or better) cable

USB Device Support

Traffic Types: All USB 2.0 and 1.1
Device Types: All USB 2.0 and 1.1 devices
Maximum Devices: Supports up to 31 devices including hubs

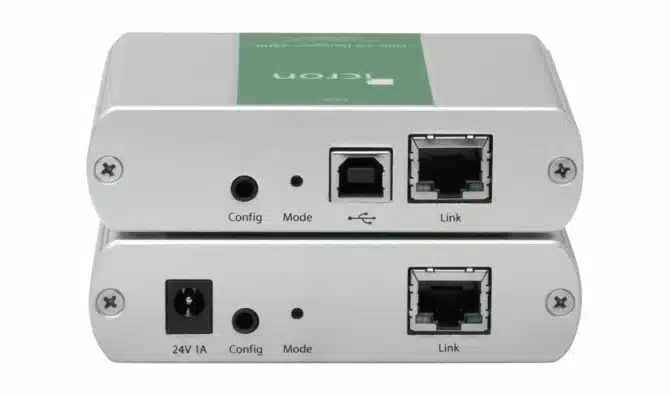

Local Extender (LEX)

USB Connector: 1x USB Type B Port
Link Connector: 1x RJ45
Enclosure Material: Silver Anodized Aluminum
Dimensions: 100mm x 76mm x 26mm (3.9″ x 3.0″ x 1.0″)
Weight: 179 g (0.39 lbs.)

Remote Extender (REX)

USB Connector: 4x USB Type A Ports
Link Connector: 1x RJ45
Power Supply: 100-240V AC Input, 24V 1A DC Output
Current Available to USB at REX: 4x 600mA
Maximum USB Devices Supported: 31 devices and hubs
Enclosure Material: Silver Anodized Aluminum
Dimensions: 100mm x 76mm x 26mm (3.9″ x 3.0″ x 1.0″)
Weight: 192 g (0.42 lbs.)

Hub Tiers Used: 1

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The USB 2.0 Ranger 2304 system includes:

Local Extender (LEX)
Remote Extender (REX)
USB 2.0 Cable
AC Power Adapter
Country Specific Power Cord
Quick Start Guide
2-year Warranty

Packaged shipping weight:

665 g (1.47 lbs.)

Part Number

Part Number	Name	Description
00-00347	USB 2.0 Ranger® 2304 – NA	4-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, NA Power Cord
00-00348	USB 2.0 Ranger® 2304 – EU	4-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, EU Power Cord
00-00349	USB 2.0 Ranger® 2304 – UK	4-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, UK Power Cord
00-00350	USB 2.0 Ranger® 2304 – AU	4-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, AU Power Cord
00-00373	USB 2.0 Ranger® 2304 – JP	4-Port USB 2.0 100m CAT 5e/6/7 Extender System, 100-240V Power Adapter, JP Power Cord
