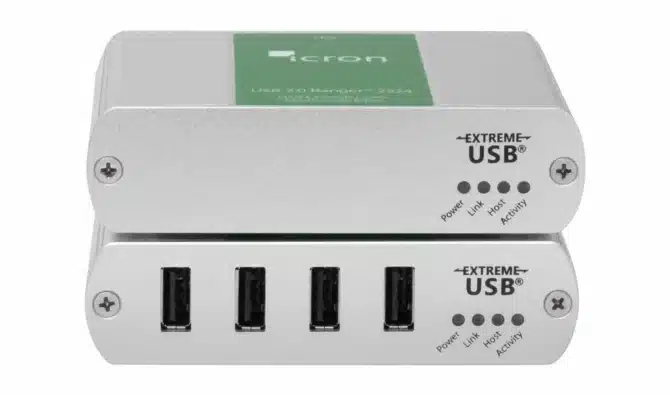

Ranger 2324

4-Port USB 2.0 Fiber Multimode Extender System

Icron Ranger® 2324 extends high-speed USB 2.0 connections at up to 480Mbps over 500m (1,640 ft) of OM2 fiber optic cable.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron Ranger® 2324 leverages fiber optic connection to deliver high-speed USB 2.0 extension over a greater distance. Supporting distances up to 500 meters using OM2 fiber,this solution provides reliable USB extension in environments where traditional cabling solutions fall short. This extender supports a variety of USB 2.0 and 1.1 devices, ensuring versatility across different use cases.

Designed for ease of use, the Ranger 2324 offers plug-and-play functionality with no additional software drivers required. It is compatible with all major operating systems, including Windows®, macOS™, Linux®, and ChromeOS™. This device is FCC/CE Class B certified, ensuring compliance with high standards for electronic safety and performance. Its integrated hub delivers up to 1 Amp to each USB port, with a total of 2.5 Amps shared, making it suitable for high-power devices and bulk data transfers.

Applications

Industrial Control
KVM Extension
Digital Signage
Home Network Integration
Medical Device Connectivity
Security: Web Camera, Access Control

Features

High-Speed and Longer-Range Extension: Extends USB 2.0 connections up to 500 meters (1,640 feet) over OM2 multimode fiber, supporting data rates up to 480Mbps.

Integrated Hub: Provides up to 1 Amp to each of the four USB ports, with a total of 2.5 Amps shared for enhanced power distribution.

Electrical Isolation: Ensures safety and reliability in various installation environments.

Mass Storage Acceleration: Optimized for efficient bulk data transfers.

Plug-and-Play: No software drivers required; works seamlessly with Windows®, macOS™, and Linux®.

Certified Reliability: FCC/CE Class B certified for high-quality performance and compliance.

Specifications

Range

Direct Connect: Up to 500m (1,640 ft) over Multimode OM2; up to 275m (902 ft) over OM1

USB Speeds

USB 2.0: Up to 480Mbps
USB 1.1: Up to 12Mbps

USB Device Support

Maximum Devices: Supports up to 30 devices

Local Extender (LEX)

USB Connector: 1x USB Type B Port
Link Connector: 1x SFP Duplex LC
Mounting: 4 surface mounting holes or optional mounting kit available
Enclosure Material: Silver Anodized Aluminum
Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9″ x 3.0″ x 1.0″)
Weight: 197 g (0.43 lbs.)

Remote Extender (REX)

USB Connector: 4x USB Type A Ports
Link Connector: 1x SFP Duplex LC
Available Current: Up to 1 Amp to each USB port; 2.5 Amps total shared
Power Supply: 100-240V AC Input, 24V 1A DC Output
Dimensions: 100mm x 76mm x 26mm (3.9″ x 3.0″ x 1.0″)
Mounting: 4 surface mounting holes or optional mounting kit available
Enclosure Material: Silver Anodized Aluminum
Weight: 208 g (0.46 lbs.)

Hub Tiers Used: 1

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The USB 2.0 Ranger 2324 extender system includes:

Local Extender (LEX)
Remote Extender (REX)
SFP Multimode Transceiver Modules
USB 2.0 Cable
AC Power Adapter
Country Specific Power Cord
Quick Start Guide
2-year Warranty

Packaged shipping weight:

907 g (2.00 lbs.)

Part Number

Part Number	Name	Description
00-00411	USB 2.0 Ranger 2324 – NA	4-Port USB 2.0 500m Multimode Fiber Optic Extender System, 100-240V Power Adapter, NA Power Cord
00-00412	USB 2.0 Ranger 2324 – EU	4-Port USB 2.0 500m Multimode Fiber Optic Extender System, 100-240V Power Adapter, EU Power Cord
00-00413	USB 2.0 Ranger 2324 – UK	4-Port USB 2.0 500m Multimode Fiber Optic Extender System, 100-240V Power Adapter, UK Power Cord
00-00414	USB 2.0 Ranger 2324 – AU	4-Port USB 2.0 500m Multimode Fiber Optic Extender System, 100-240V Power Adapter, AU Power Cord
00-00415	USB 2.0 Ranger 2324 – JP	4-Port USB 2.0 500m Multimode Fiber Optic Extender System, 100-240V Power Adapter, JP Power Cord
