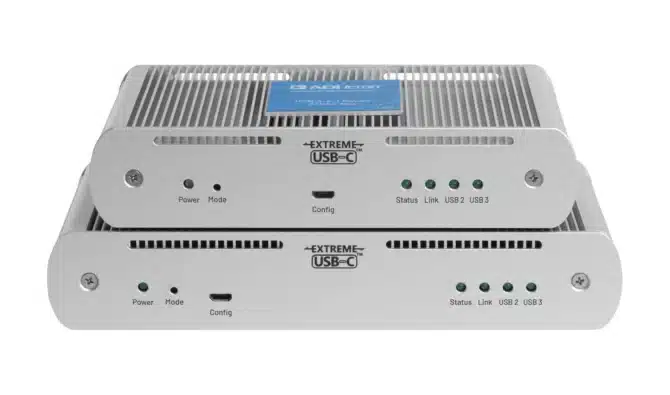

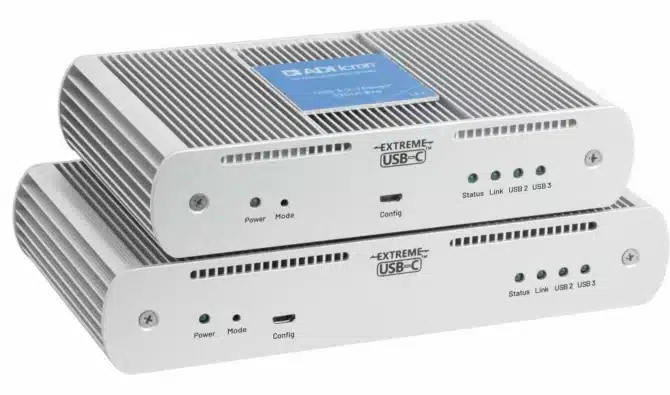

Raven 3204C Pro

Features

World’s First USB 3-2-1 LAN Extender: Extends USB 3-2-1 devices over a 10GbE LAN or CAT 6a/7 cable.

Unrivaled Interoperability: Supports all USB 3-2-1 devices up to 5Gbps.

Isochronous Support: Optimized for high-performance camera and video capture.

Extended Range: Up to 200 meters over 10GbE LAN or 100 meters via CAT 6a/7.

USB-C Ports: For host and remote devices, accommodating a wide range of USB peripherals perfect for Pro AV applications.

Firmware Upgrade Over Network: Simplifies updates and reduces maintenance costs.

1Gb Ethernet Pass-Through: Reduces additional cable runs and installation complexity.

ExtremeUSB-C™ Technology: Transparent USB 3-2-1 extension, supports all USB transaction types and devices..

Plug and Play: No software drivers required, compatible with all major operating systems.

Specifications

Range

• Network Connect: Up to 200m (656 ft) across a single 10GBASE-T Switch (Layer 2)
• Point-to-Point: Up to 100m (328 ft) over CAT 6a/7 cable

USB Device Support

• USB Bandwidth: Up to 5Gbps
• Device Compatibility: All Devices Types and Classes (Control, Interrupt, Bulk, Isochronous)
• Host Compatibility: OHCI, UHCI, EHCI, xHCI
• Maximum Devices: Supports up to 30 devices

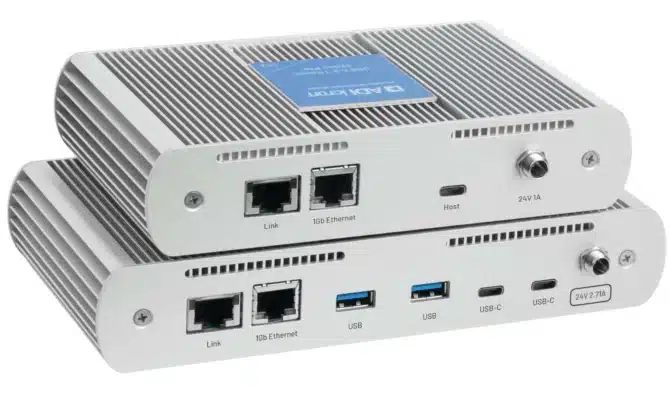

Local Extender (LEX)

• USB Connector: 1x USB-C Port
• 1GbE Pass-Through: 1x RJ45 Ethernet 100/1000 Port
• Link Connector: 1x RJ45 Ethernet Link Port
• Power Supply: 24V 1A DC Locking Jack
• Dimensions: 165.0mm x 100.0mm x 35.0mm (6.50″ x 4.00″ x 1.38″)
• Weight: 572 g (1.26 lbs.)
• Enclosure Material: Silver Anodized Aluminum

Remote Extender (REX)

• USB connector: 2x USB-C Ports, 2 USB-A Ports
• 1GbE Pass-Through: 1x RJ45 Ethernet 100/1000 Port
• Link Connector: 1x RJ45 Ethernet Link Port
• Power Supply: 24V 2.71A DC Locking Jack
• Available Current: 3A (15W) per USB-C Port and 1.2A (6W) per USB-A Port
• Dimensions: 197.0mm x 100.0mm x 35.0mm (7.75″ x 4.00″ x 1.38″)
• Weight: 697 g (1.54 lbs.)
• Enclosure Material: Silver Anodized Aluminum

Hub Tiers Used: 2

Environmental

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

Compliance

• FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1, NRTL, RCM, and UKCA

In The Box

The Raven 3204C Pro extender system includes:

• Local Extender (LEX)
• Remote Extender (REX)
• USB-C Cable
• 24 1A AC Adapter
• 24 2.71A AC Adapter
• 2x Country Specific Power Cords
• Quick Start Guide
• 2-year Warranty

Packaged shipping weight:

• 2.5 kg (5.5 lbs.)
