Rover 2850

2-Port USB 1.1 85m CAT 5e/6/7 Extender System

Icron Rover® 2850 is a 2-port extender for USB 1.1 connections beyond the desktop up to 85 meters without the need for external power adapters, ideal for keyboards, mice, game controllers and interactive whiteboards – including all SMART Boards and Promethean ActivBoards.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

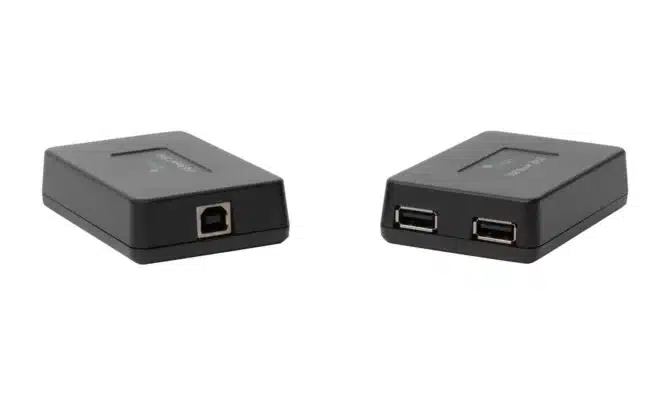

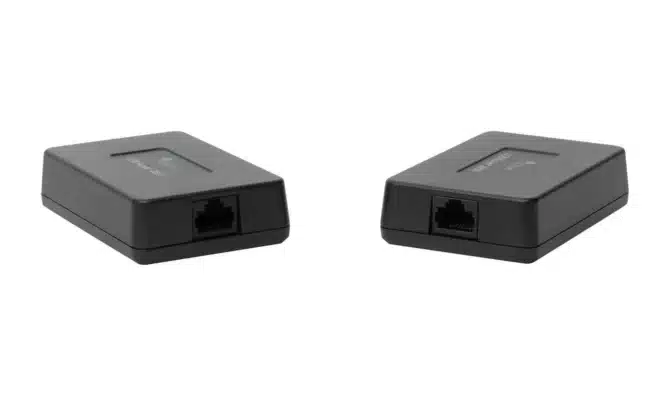

The USB Rover® 2850 facilitates seamless USB 1.1 extension beyond the desktop using standard CAT 5e UTP cables, eliminating the need for additional power sources. It comprises a Local Extender (LEX) and a Remote Extender (REX), designed to connect USB peripherals reliably at distances of up to 85 meters for low-power HID devices and 40 meters for all USB devices. This plug-and-play solution is perfect for diverse environments, offering straightforward installation and operation.

Ideal for interactive environments and professional settings, the Rover 2850 supports both Full-Speed and Low-Speed USB connections, making it a versatile choice for connecting various peripherals. Its robust design ensures stable operation and compatibility with a range of devices, including interactive whiteboards and game controllers, while its industrial-rated construction provides reliable performance in demanding applications.

Applications

Interactive White Board
KVM Extension: Keyboard and Mouse
Digital Signage
Industrial Control
Corporate Board Rooms: USB Device Extension

* Up to 40m for all USB devices; 85 meters is achievable for most low powered HID USB devices.

Features

Extended Range: Connect USB 1.1 devices up to 85 meters over CAT 5e/6/7 UTP cable, with a reliable connection for low-powered devices.

Broad Compatibility: Works with all USB 1.1 devices, including hubs, keyboards, mice, game controllers and interactive whiteboards like SMART Boards and Promethean ActivBoards.

No External Power Required: Operates without the need for additional power adapters, simplifying installation and reducing clutter.

Plug-and-Play: True plug-and-play functionality with no software drivers required for seamless integration with Windows®, Mac OS X®, and Linux®.

Durable Design: Industrial-rated ESD/EFT immunity and FCC/CE Class B compliance ensure robust and reliable operation

Specifications

Range

Reach: Up to 85m* (279 ft)

Local Extender (LEX)

USB Connector: 1x USB Type B Port
Link Connector: 1x RJ45
Enclosure: Black ABS
Dimensions: 85mm x 55mm x 22mm (3.34″ x 2.17″ x 0.87″)
Weight: 45 g (0.10 lbs.)

Remote Extender (REX)

USB Connector: 2x USB Type A Ports
Link Connector: 1x RJ45
Maximum Current Available: 400mA shared between USB ports when LEX is supplied with 800mA
Enclosure: Black ABS
Dimensions: 85mm x 55mm x 22mm (3.34″ x 2.17″ x 0.87″)
Weight: 50 g (0.11 lbs.)

Hub Tiers Used: 1

Environmental
