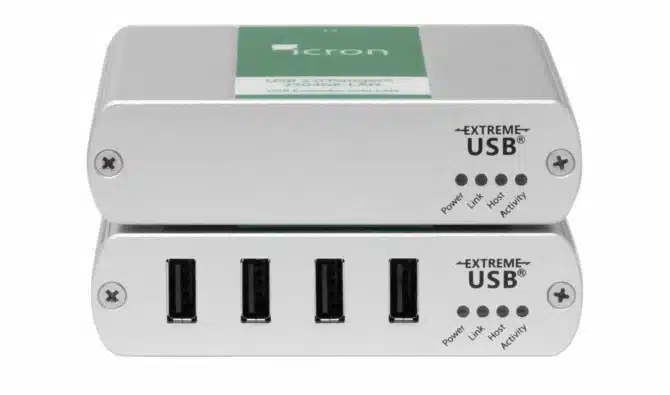

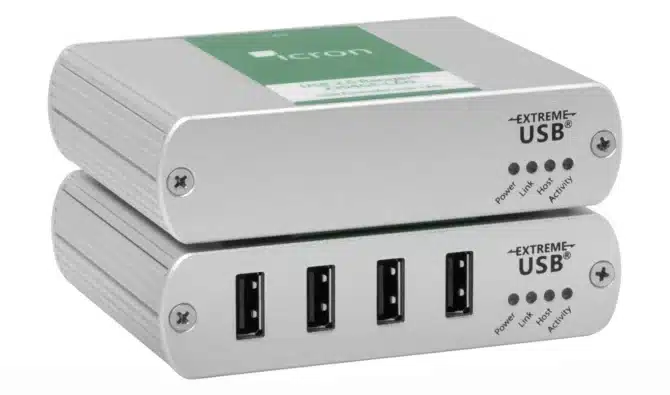

Ranger 2304GE-LAN

4-Port USB 2.0 Ethernet LAN Extender System

Icron Ranger® 2304GE-LAN extends high-speed USB 2.0 connections up to 100m over a GigE Local Area Network (LAN) or directly connect over CAT 5e/6/7 cabling.

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron Ranger® 2304GE-LAN offers a reliable solution for extending USB 2.0 connections over long distances, up to 100 meters. Whether you need to leverage existing GigE LAN infrastructure or use direct CAT 5e/6/7 cabling, this extender provides a seamless connection for peripherals such as keyboards, mice, interactive whiteboards, and more.

This 4-port USB 2.0 LAN extender supports data transfer rates up to 480Mbps and is engineered for demanding environments where reliable USB connectivity is crucial. Ideal for applications in industrial control, digital signage, medical device connectivity, and more, the Ranger 2304GE-LAN integrates effortlessly into both new installations and existing network setups, ideal for extending USB 2.0 peripherals and supporting isochronous devices such as webcams.

Applications

The Ranger 2304GE-LAN system extends USB devices point-to-point with CAT 5e/6/7 cabling or can leverage existing network infrastructure, and is ideally suited for the following applications:

Industrial Control
KVM Extension
Digital Signage
Interactive Whiteboards
Medical Device Connectivity

Features

Versatile Connectivity: Extend USB 2.0 connections up to 100 meters over GigE (100Mbps or 1000Mbps) LAN or directly via CAT 5e/6/7 cabling.

Save Time and Money: Use existing LAN infrastructure.

High-Speed Performance: Supports data rates up to 480Mbps, making it ideal for high-speed USB 2.0 and 1.1 devices.

Simple Installation: Utilizes pre-paired networked configuration for easy setup, and supports up to 30 USB devices or hubs.

Plug-and-Play: No software drivers required, compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Robust Design: FCC/CE Class B certified with a rugged metal enclosure for durability.

Specifications

Range

Network Connect: Up to 100m (328 ft) between switches over solid core CAT 5e/6/7
Direct Connect: Up to 100m (328 ft) over solid core CAT 5e/6/7 or better

USB Device Support

Traffic Types: All USB 2.0 and 1.1
Device Types: All USB 2.0 and 1.1 devices
Maximum USB Devices Supported: 30 USB devices or hubs

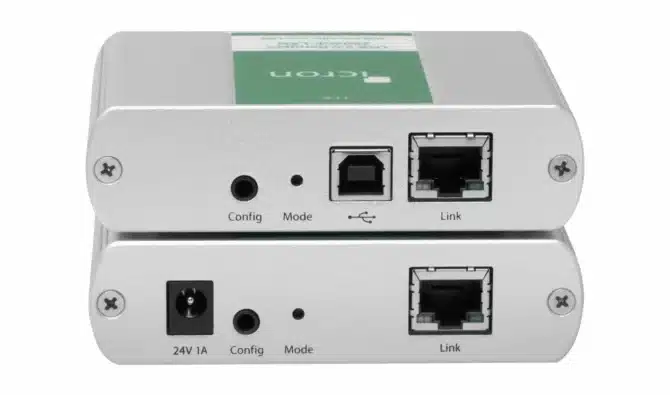

Local Extender (LEX)

USB Connector: 1x USB Type B Port
Link Connector: 1x RJ45
Dimensions: 100mm x 76mm x 26mm (3.9” x 3.0” x 1.0”)
Enclosure Material: Silver Anodized Aluminum
Weight: 181 g (0.40 lbs.)

Remote Extender (REX)

USB Connectors: 4x USB Type A Ports
Link Connector: 1x RJ45
Available current: Up to 600mA at each USB port concurrently
Power Supply: 100-240V AC input, 24V 1A DC Output
Dimensions: 100mm x 76mm x 26mm (3.9” x 3.0” x 1.0”)
Enclosure Material: Silver Anodized Aluminum
Weight: 191 g (0.42 lbs.)

Hub Tiers Used: 1

Environmental

Operating Temperature: 0°C to 50°C ( 32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The USB 2.0 Ranger 2304GE-LAN system includes:

Local Extender (LEX)
Remote Extender (REX)
USB 2.0 Cable
AC Power Adapter
Country Specific Power Cord
Quick Start Guide
2-year Warranty

Packaged shipping weight:

875 g (1.93 lbs.)

Part Number

Part Number	Name	Description
00-00376	USB 2.0 Ranger 2304GE-LAN – NA	4-Port USB 2.0 Gigabit Ethernet LAN Extender System, Silver, 100-240V Power Adapter, NA Plug
00-00377	USB 2.0 Ranger 2304GE-LAN – EU	4-Port USB 2.0 Gigabit Ethernet LAN Extender System, Silver, 100-240V Power Adapter, EU Plug
00-00378	USB 2.0 Ranger 2304GE-LAN – UK	4-Port USB 2.0 Gigabit Ethernet LAN Extender System, Silver, 100-240V Power Adapter, UK Plug
00-00379	USB 2.0 Ranger 2304GE-LAN – AU	4-Port USB 2.0 Gigabit Ethernet LAN Extender System, Silver, 100-240V Power Adapter, AU Plug
00-00380	USB 2.0 Ranger 2304GE-LAN – JP	4-Port USB 2.0 Gigabit Ethernet LAN Extender System, Silver, 100-240V Power Adapter, JP Plug
10-00406	USB Mounting Kit – Silver	Includes: 2 brackets, 4 locking washers and 4 (M3 x 5mm) Phillips pan head screws. Order 1 kit per LEX or REX and 2 kits per system.
