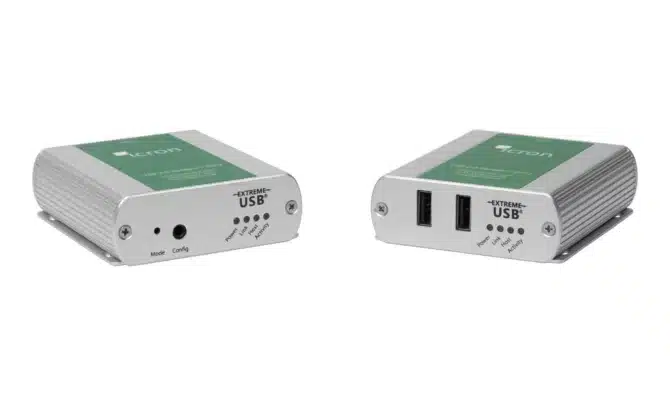

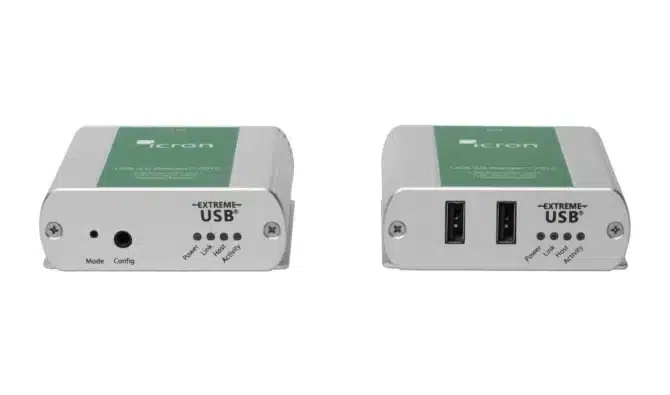

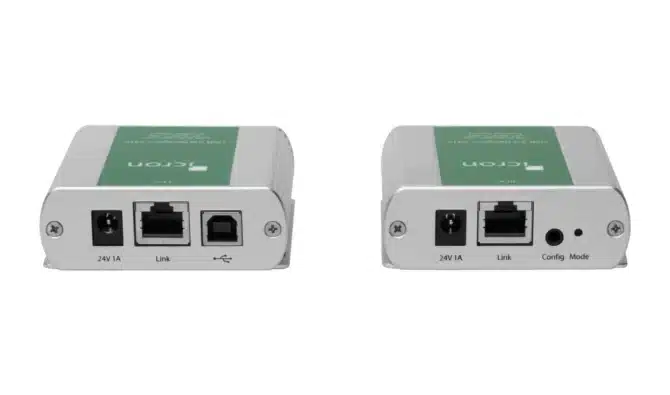

Ranger 2312

2-Port USB 2.0 100m CAT 5e/6/7 Extender System with Flexible Power

Icron Ranger® 2312 with flexible power extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power either the Local Extender (LEX) or Remote Extender (REX).

User Guide Quick Start Guide Product Datasheet

Where to Buy

Overview Features Specifications In The Box Part Number

Overview

The Icron Ranger® 2312 provides a robust solution for extending USB 2.0 connections across long distances with exceptional reliability. Capable of extending up to 100 meters (328 feet) using CAT 5e/6/7 cabling, this 2-port extender supports data transfer rates up to 480Mbps. Its flexible power configuration allows installers to choose between powering the Local Extender (LEX) or the Remote Extender (REX), facilitating convenient and adaptable installations.

Designed for true plug-and-play functionality, the Ranger 2312 is compatible with all major operating systems, including Windows®, macOS™, and Linux®. It is certified to FCC/CE Class B standards and is ideal for a wide range of applications, including industrial control, KVM extension, digital signage, medical device connectivity, and security systems.

Applications

Industrial Control
KVM Extension
Digital Signage
Medical Device Connectivity
Security: Web Camera, Access Control

Features

Long-Range Extender: Extends two USB 2.0 connections up to 100 meters (328 feet) over CAT 5e/6/7 cabling.

Flexible Power Options: Power either the Local Extender (LEX) or Remote Extender (REX), with up to 1.5 Amps total available when both ports are in use.

High-Speed Performance: Supports data transfer rates up to 480Mbps for USB 2.0 and up to 12Mbps for USB 1.1.

Mass Storage Acceleration: Enhances performance for bulk data transfers with USB 2.0 mass storage devices.

Plug-and-Play: No software drivers required; compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Durable Construction: Rugged metal enclosures with FCC/CE Class B certification for reliable performance.

Specifications

Range

Direct connect: Up to 100m (328 ft) over CAT 5e/6/7

USB Speeds

USB 2.0: Up to 480Mbps
USB 1.1: Up to 12Mbps

USB Device Support

Maximum Devices: 30 devices or 4 USB hubs with 26 USB devices

Power

Power Supply: 100-240V AC Input, 24V 1A DC Output (apply at either LEX or REX).

Local Extender (LEX)

USB Connector: 1x USB Type B Port
Link Connector: 1x RJ45
Mounting: Slots for cable ties or optional mounting kit available
Enclosure Material: Silver Anodized Aluminum
Dimensions: 87mm x 75mm x 26mm (3.4″ x 3.0″ x 1.0″)
Weight: 137 g (0.30 lbs.)

Remote Extender (REX)

USB Connector: 2x USB Type A Ports
Link Connector: 1x RJ45
Available Current: Up to 1 Amp to USB port; 1.5 Amps total shared
Mounting: Slots for cable ties or optional mounting kit available
Enclosure Material: Silver Anodized Aluminum
Dimensions: 87mm x 75mm x 26mm (3.4″ x 3.0″ x 1.0″)
Weight: 157 g (0.35 lbs.)

Hub Tiers Used: 1

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The USB 2.0 Ranger 2312 system includes:

Local Extender (LEX)
Remote Extender (REX)
USB 2.0 cable
AC Power Adapter
Country Specific Power Cord
Quick Start Guide
2-year Warranty

Packaged shipping weight::

805 g (1.77 lbs.)

Part Number

Part Number	Name	Description
00-00406	USB 2.0 Ranger 2312 – NA	2-Port USB 2.0 Flexible Power CAT 5e/6/7 100m Extender System, 100-240V Power Adapter, NA Power Cord
00-00407	USB 2.0 Ranger 2312 – EU	1-Port USB 2.0 Flexible Power CAT 5e/6/7 100m Extender System, 100-240V Power Adapter, EU Power Cord
00-00408	USB 2.0 Ranger 2312 – UK	2-Port USB 2.0 Flexible Power CAT 5e/6/7 100m Extender System, 100-240V Power Adapter, UK Power Cord
00-00409	USB 2.0 Ranger 2312 – AU	2-Port USB 2.0 Flexible Power CAT 5e/6/7 100m Extender System, 100-240V Power Adapter, AU Power Cord
00-00410	USB 2.0 Ranger 2312 – JP	2-Port USB 2.0 Flexible Power CAT 5e/6/7 100m Extender System, 100-240V Power Adapter, JP Power Cord
10-00535	USB Mounting Kit (2301/12)	USB Extender Mounting Kit for 2301/2312 (Silver) – set of two brackets and hardware
