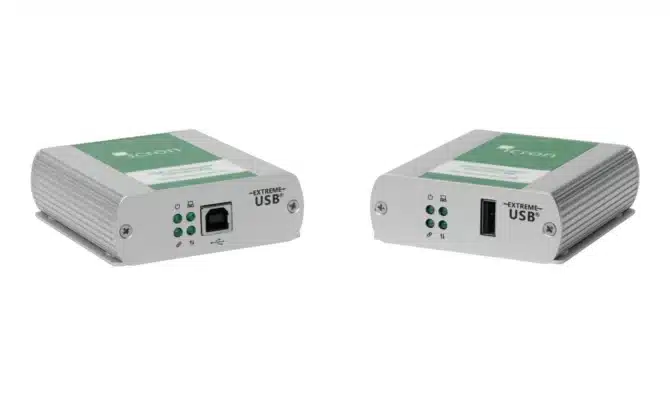

Ranger 2301GE-LAN

Features

Long-Range Connectivity: Extend USB 2.0/1.1 devices up to 100 meters over GigE LAN or directly via CAT 5e/6/7 cabling.

High-Speed Performance: Supports data rates up to 480Mbps for USB 2.0 and up to 12Mbps for USB 1.1.

Network Integration: Pre-paired for easy network configuration; supports up to 100 meters (328 feet) between switches over solid core CAT 5e/6/7.

Mass Storage Acceleration: Optimized for bulk data transfers with USB 2.0 mass storage devices.

Plug-and-Play: No software drivers required; compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Specifications

Range

• Network Connect: Up to 100m (328 ft) between switches over solid core CAT 5e/6/7
• Direct Connect: Up to 100m (328 ft) over CAT 5e/6/7

USB Speeds

• USB 2.0: Up to 480Mbps
• USB 1.1: Up to 12Mbps

USB Device Support

• Maximum Devices: Supports up to 30 devices

Networking

• Standards: 1000BASE-T
• Data Traffic: Layer 2 (UDP blocked)
• Control Traffic: Layer 3, customizable as unicast or broadcast

Local Extender (LEX)

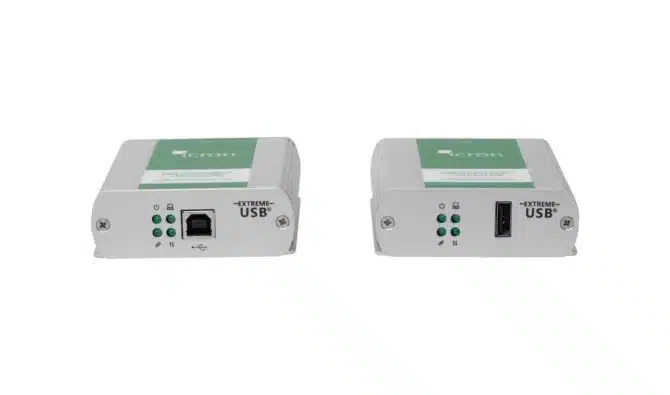

• USB Connector: 1x USB Type B Port

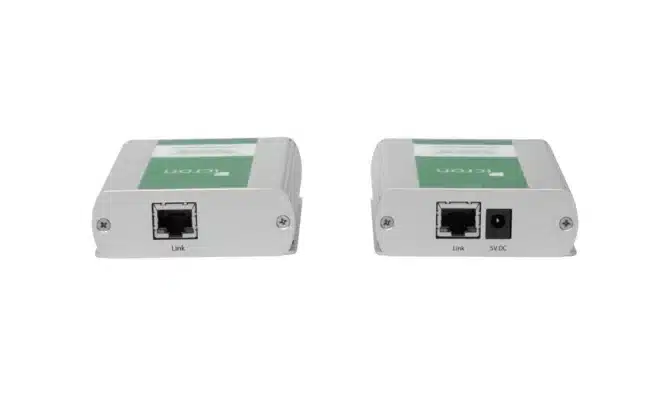

• Link Connector: 1x RJ45
• Mounting: Slots for cable ties or optional mounting kit available
• Enclosure Material: Silver anodized aluminum
• Dimensions: 86mm x 75mm x 26mm (3.4″ x 3.0″ x 1.0″)
• Weight: 121 g (0.27 lbs.)

Remote Extender (REX)

• USB Connector: 1x USB Type A Port
• Link Connector: 1x RJ45
• Available Current: Up to 1 Amp to USB port
• Power Supply: 100-240V AC Input, 5V 3A DC Output
• Mounting: Slots for cable ties or optional mounting kit available
• Enclosure Material: Silver anodized aluminum
• Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
• Weight: 122 g (0.27  lbs.)

Hub Tiers Used: 1

Environmental

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

• FCC (Class B), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

In The Box

The USB 2.0 Ranger 2301GE-LAN extender system includes:

• Local Extender (LEX)
• Remote Extender (REX)
• USB 2.0 Cable
• AC Power Adapter
• Country Specific Power Cord
• Quick Start Guide
• 2-year Warranty

Packaged shipping weight:

• 775 g (1.71 lbs.)
