Raven 3301-ECO

1-Port USB 3 5Gbps, 100m CAT 5e Extender System

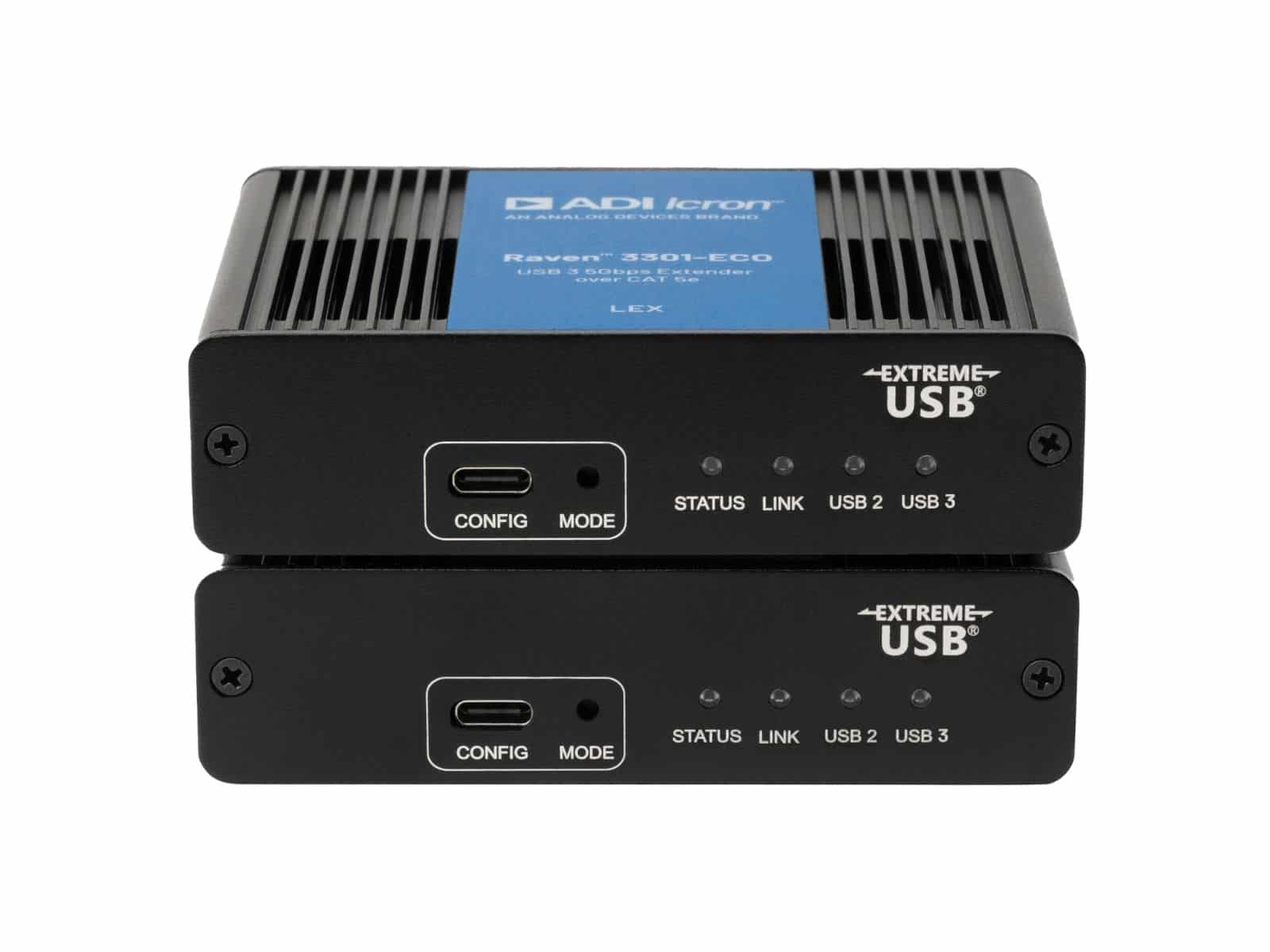

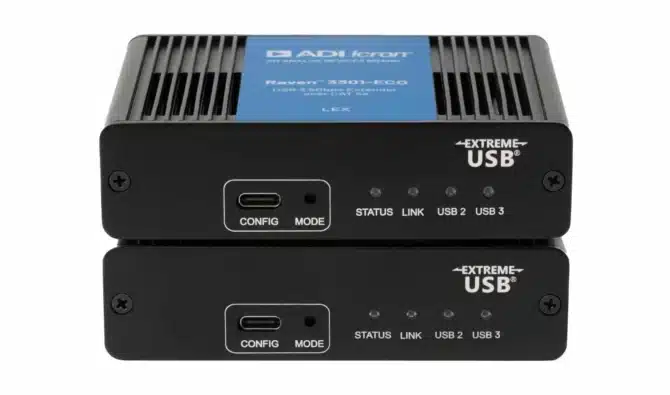

The Icron Raven™ 3301-ECO is a third-generation USB 3 extender that’s 70% smaller and consumes less than 3 watts of power, while reliably extending USB 3 over standard CAT 5e cabling. Its compact, energy-efficient design offers a streamlined solution for high-performance USB connectivity.

Overview

The Icron Raven 3301-ECO is a low power and simple system for extending USB 3. Featuring a single USB-C port, support for CAT 5e or better cabling, and no built-in USB hubs, it’s ideal for extending remote USB 3 devices such as conference cameras, touch controllers, all-in-one devices and more.

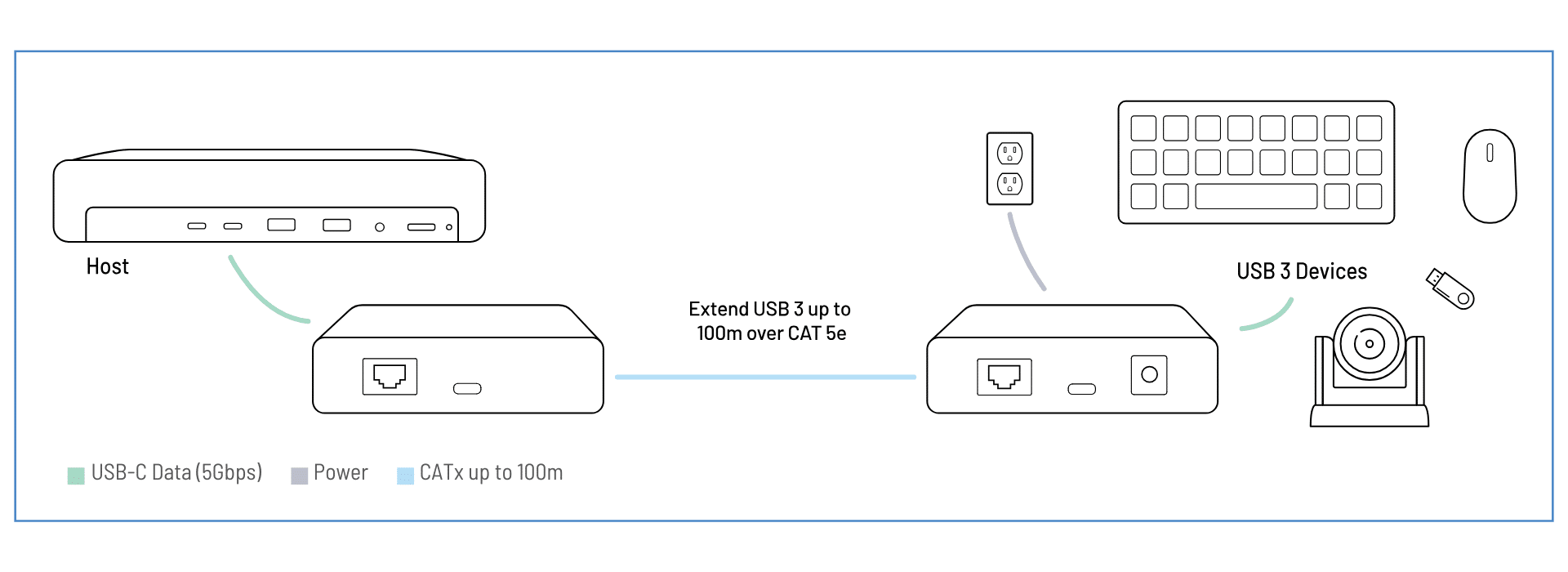

The Raven 3301-ECO supports all USB transaction types including ISO, all previous USB specifications like USB 2, and can extend up to 100m point-to-point with DC power applied at the remote end.

Applications

  • Conference Rooms
  • Security and Monitoring
  • Video Matrix Systems
  • Remote Storage





Features

USB 3 Extension over Standard Cabling: Extends USB 3.2 Gen 1 devices up to 100 meters using cost-effective CAT 5e or better cabling.

Broad USB Compatibility: Supports all USB 3.2, USB 2.0, and USB 1.1 devices and transaction types, including isochronous transfers.

Single-Port USB-C Simplicity:
One USB-C port at each end supports high-speed peripherals like conference cameras, touch panels, and more.

Hubless Architecture: Direct USB extension without consuming hub tiers—ensures seamless device interoperability.

Remote Power Support:
Delivers up to 15W (5V 3A) at the remote end—ideal for powering high-demand USB devices.

ExtremeUSB® Technology: Delivers transparent USB extension with no drivers required, just plug and play across all major operating systems.

Platform Agnostic: Works out of the box with Windows®, macOS™, Linux®, and ChromeOS™.

Compact and Efficient Design: 70% smaller than previous generation and ultra-low power, perfect for installations where space and energy matter.

Pro AV Ready: A reliable choice for conference rooms, video walls, monitoring setups, and remote storage systems.

Specifications

Range (Point-to-Point)

  • 100m CAT 5e UTP Cable or better

USB Device Support

  • USB Bandwidth: Up to 5Gbps
  • Device Compatibility: All Devices Types and Classes (Control, Interrupt, Bulk, Isochronous)
  • Host Compatibility: OHCI, UHCI, EHCI, xHCI
  • Available Current at REX: Supplies 3A (5V, 15W)
  • Maximum Devices: Supports up to 31 devices (downstream)

Local Extender (LEX)

  • USB Connector: 1x USB-C Port
  • Link Connector: 1x RJ45 Ethernet Link Port
  • Dimensions (WxDxH): 100mm x76.0mm x 25.4mm (3.9”x3.0”x 1.0”)
  • Weight: 210 g (0.46lbs.)
  • Enclosure Material: Black Anodized Aluminum

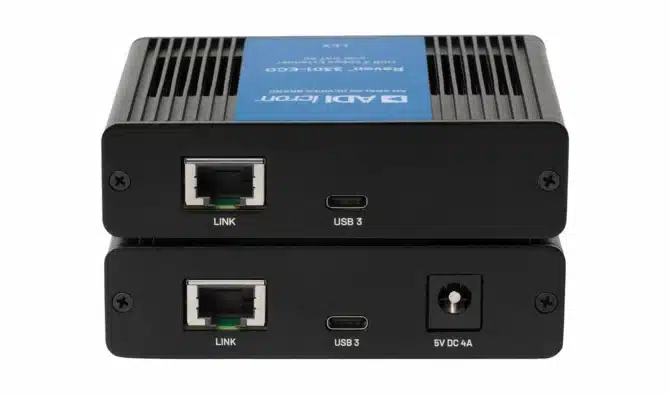

Remote Extender (REX)

  • USB connector: 1x USB-C Port
  • Link Connector: 1x RJ45 Ethernet Link Port
  • Power Input: 5V DC 4A Barrel Jack
  • Dimensions (WxDxH): 100mm x76.0mm x 25.4mm (3.9”x3.0”x 1.0”)
  • Weight: 210 g (0.46lbs.)
  • Enclosure Material: Black Anodized Aluminum

Hub Tiers Used: 0

Environmental

  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Relative Humidity:
    • 20-80% Operating
    • 10-90% Storage, non-condensing

Compliance

  • FCC (Class A), CE, RCM, UKCA, IEC/UL/cUL, ICES-003 Issue 7

In The Box

The Raven 3301-ECO extender system includes:

  • 1x Raven 3301-ECO LEX
  • 1x Raven 3301-ECO REX
  • 1x International Power Adapter
  • 1x Region Specific Power Cord
  • 1x Compliance and Warranty Insert
  • 2-Year Warranty

NOTE: USB cables not included

Packaged shipping weight:

  • 907g (2.0lbs.)

Part Number

Part Number Name Description
00-00481 Icron USB 3 Raven 3301-ECO – NA 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter – NA
00-00482 Icron USB 3 Raven 3301-ECO – EU 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter – EU
00-00483 Icron USB 3 Raven 3301-ECO – UK 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter – UK
00-00484 Icron USB 3 Raven 3301-ECO – AU 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter – AU
00-00485 Icron USB 3 Raven 3301-ECO- JP 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter – JP
10-00536 Raven Black Mounting Kit USB Mounting Kit – Black USB Extender Mounting Kit (Black) Each kit includes: 2 brackets, 4 locking washers and 4 (M2.5x8mm)
Phillips raised cheese head screws (Order: 1 kit per local or remote extender; 2 kits per system)
